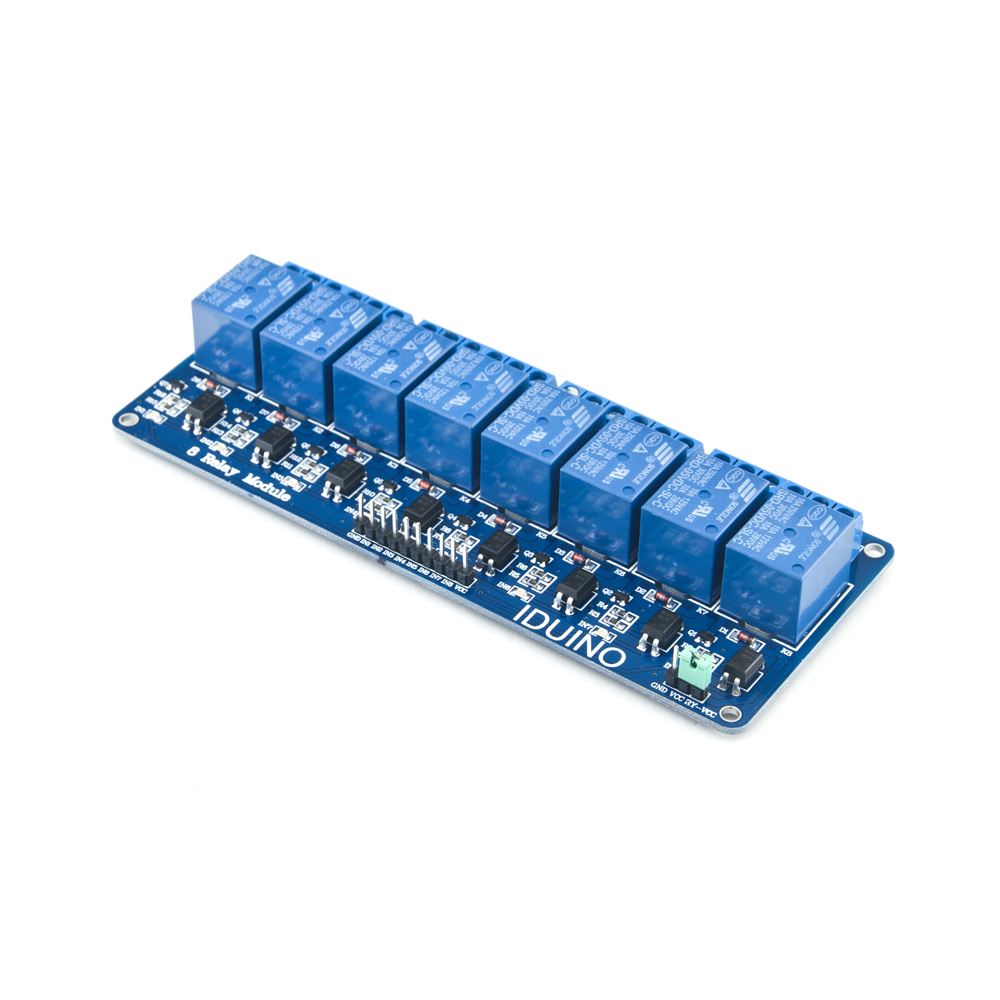

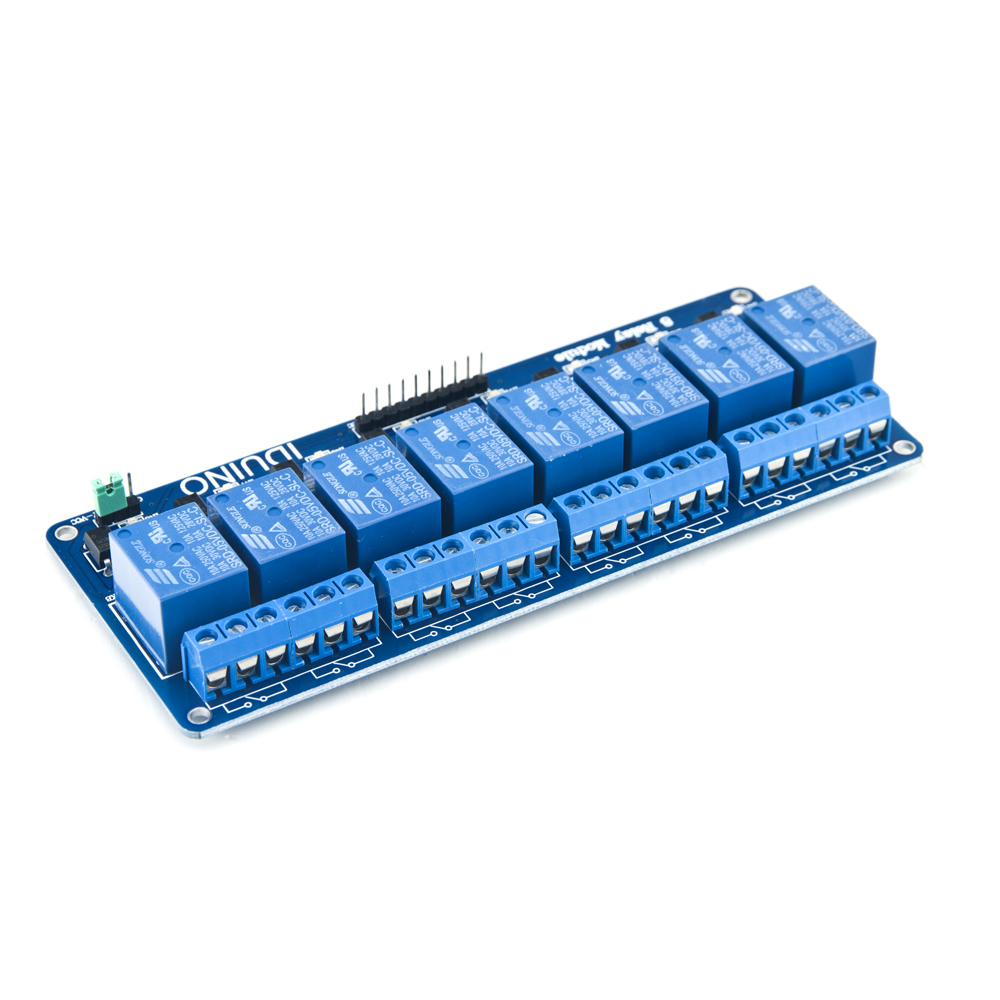

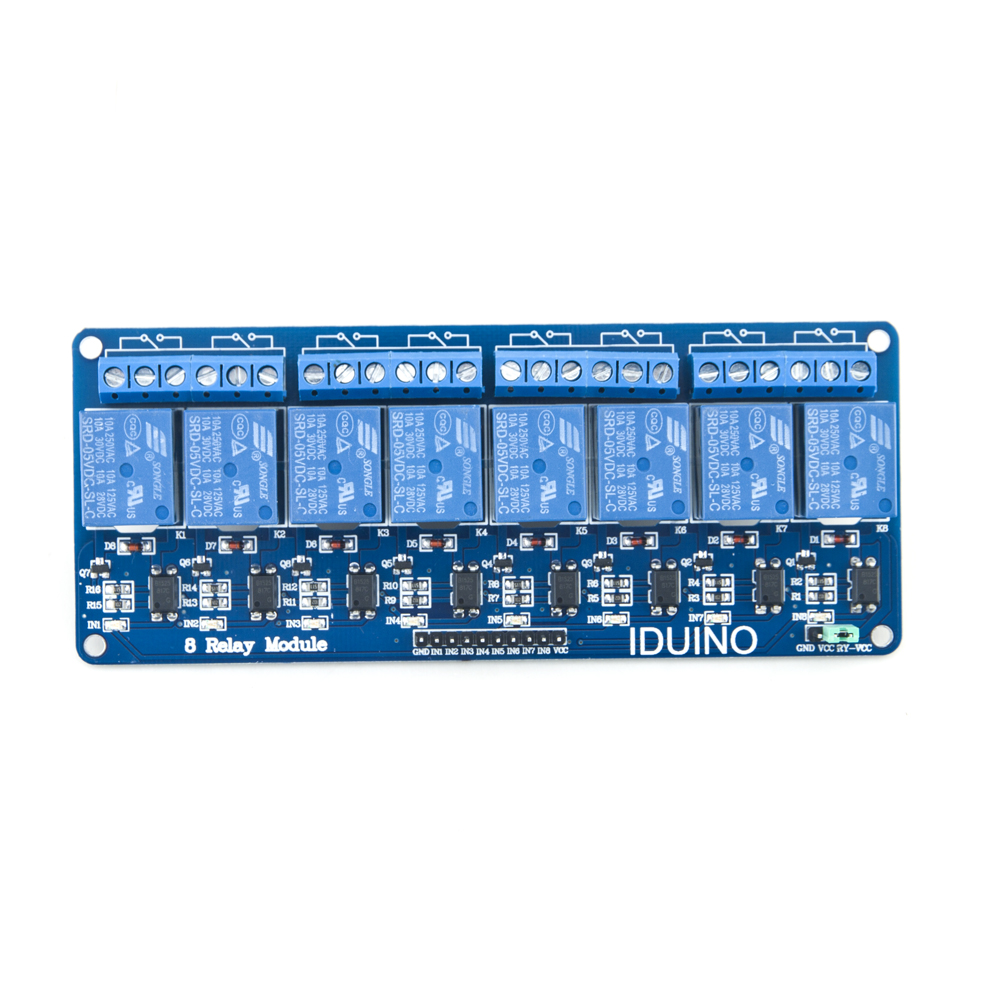

8 Channel 5V&12V Relay Module for Arduino PIC AVR MCU DSP ARM Electronic details

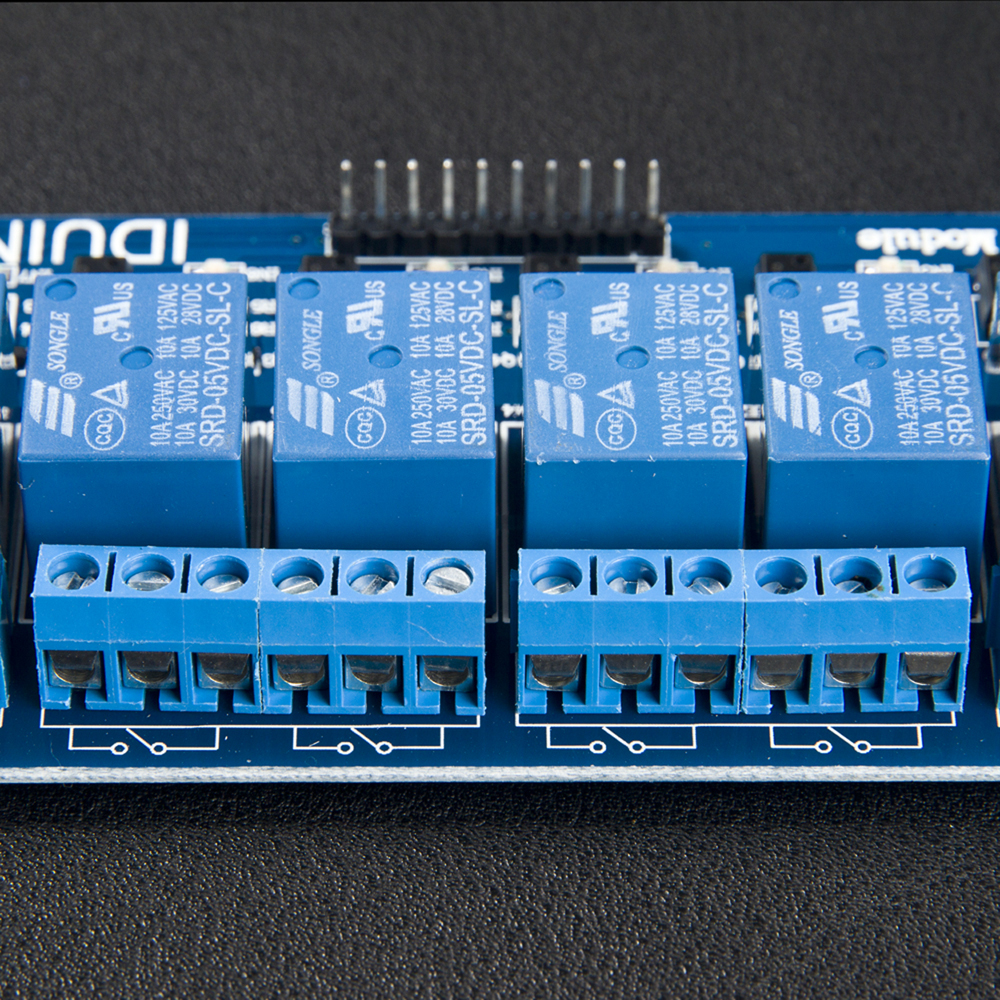

This module employs high quality relay with eight channels input and eight channels output. It can be connected to 250V/10A AC element or 24V/10A DC element to the maximum, therefore, it can be used to control lights, motors and etc.

The modularized design makes it easy to connect to Arduino expansion board. The output state of the relay is shown by a luminous diode for the convenience of actual application.

It can be controlled directly by Micro-controller (Raspberry Pi, Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

• Supply Voltage: 5V&12V DC   • Current Ratings: 10A

• Channels: 8   • Dimensions:135 x 50 x 19mm
