2 channel 5V Relay Module for Arduino ARM PIC AVR DSP Electronic details

This relay module employs high quality relay with two channels input and two channels output. It can be connected to 250V/10A AC element or 24V/10A DC element to the maximum, therefore, it can be used to control lights, motors and etc.

The modularized design makes it easy to connect to Arduino expansion board. The output state of the relay is shown by a LED for the convenience of actual application.

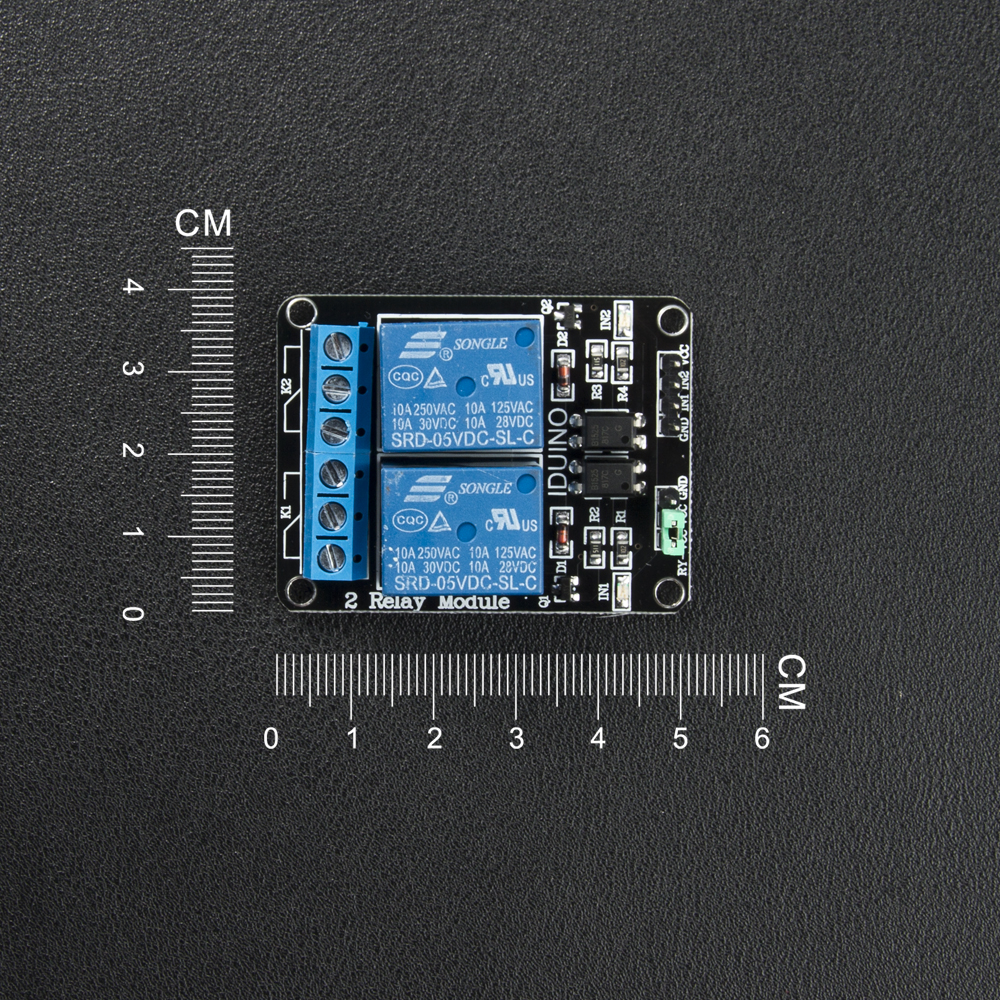

1. Size: 50.6 mm (length) * 38.8 mm (width) * 19.3 mm (high)

2. Weight: 30 g  3. PCB color: black

3. Loose relay, relay selection of quality single pole double throw. A common end and a beginning, a normally closed end

4. VCC for system power, JD_VCC power supply for the relays. The default 5 v relay, with jumper cap

5. Maximum output relay: 30 v / 10 a dc, ac 250 v /

6. Connection details:VCC: the anode system power,he cathode GND: system power,IN1 - IN2: relay control port
