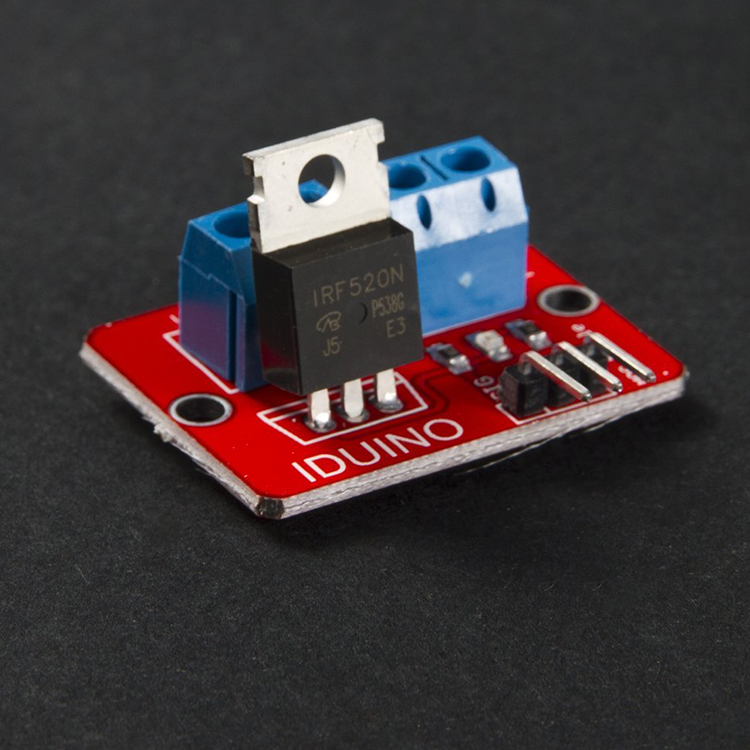

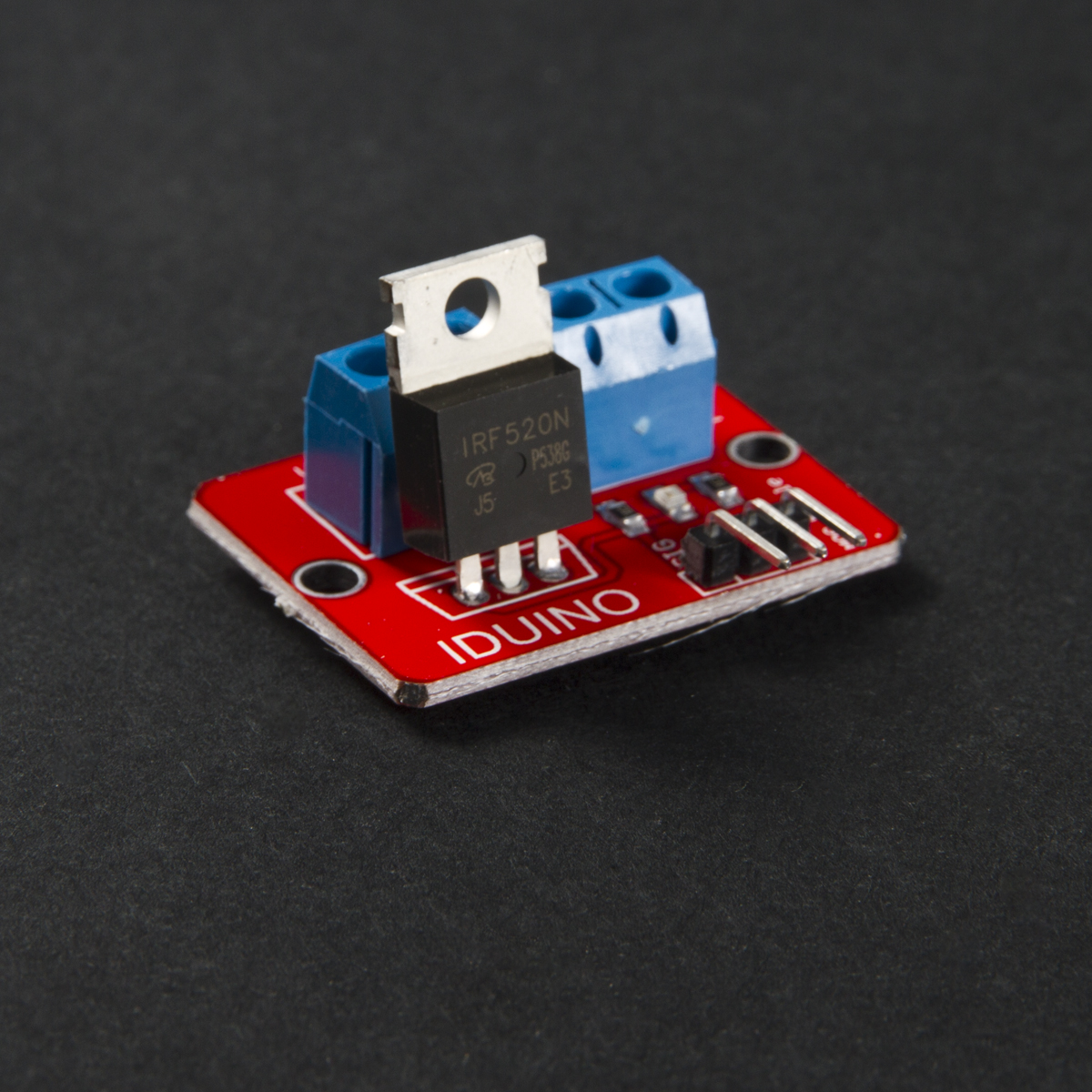

24V 5A IFR520 MOSFET Driver Module details

This little module is a breakout board for the IFR520 MOSFET transistor. The module is designed to switch heavy DC loads from a single digital pin of your microcontroller. Its main purpose is to provide a low cost way to drive a DC motor for robotics applications, but the module can be used to control most high current DC loads. Screw terminals are provided to interface to your load and external power source.

• Operating Voltage: 3.3V DC &5V DC

• Output Load Voltage: 0~24V DC

• Output Current: 5A

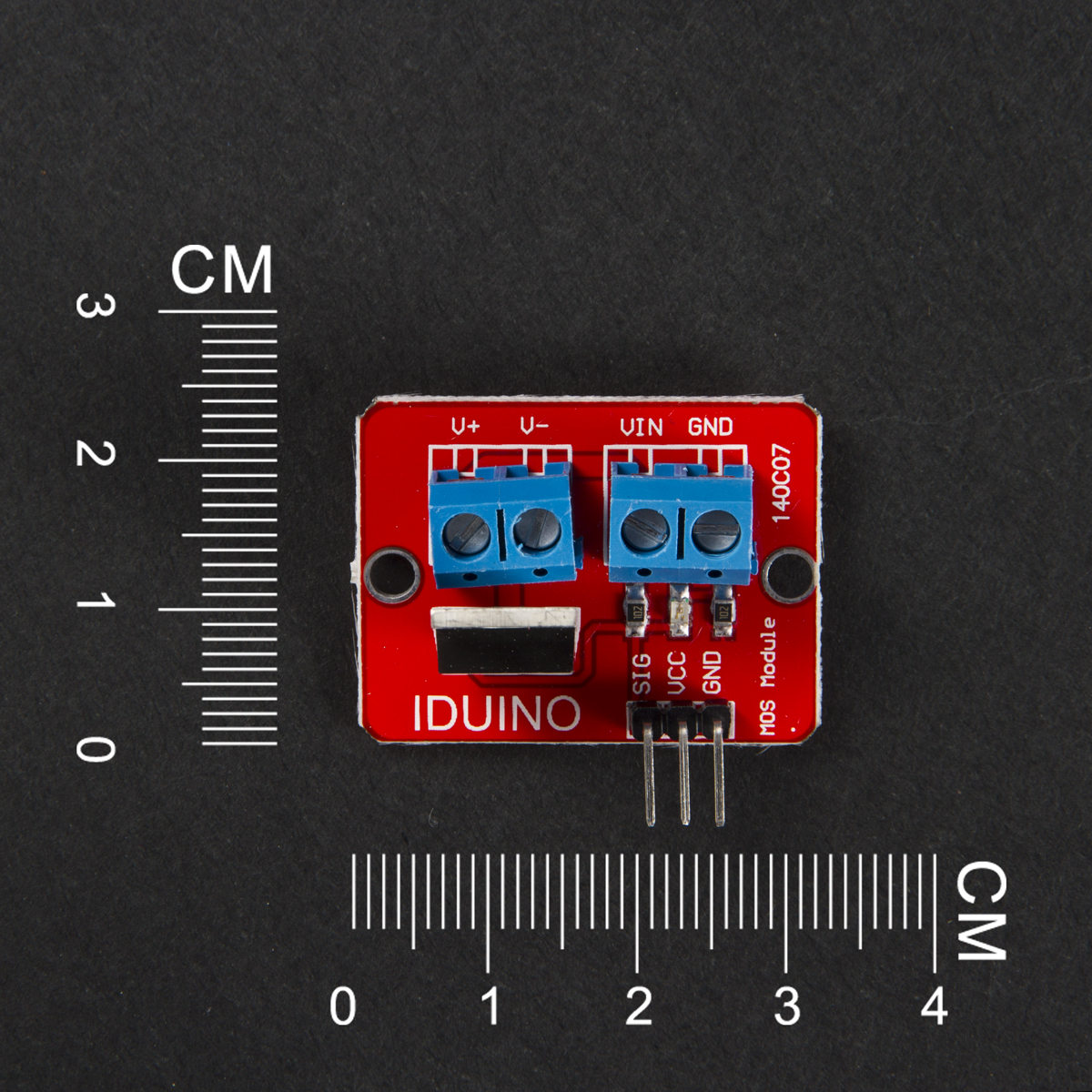

• Dimensions: 34 x 21 x 16mm
