Bluetooh XBee Bluetooth wireless module HC-05 for arduino details

Introduction

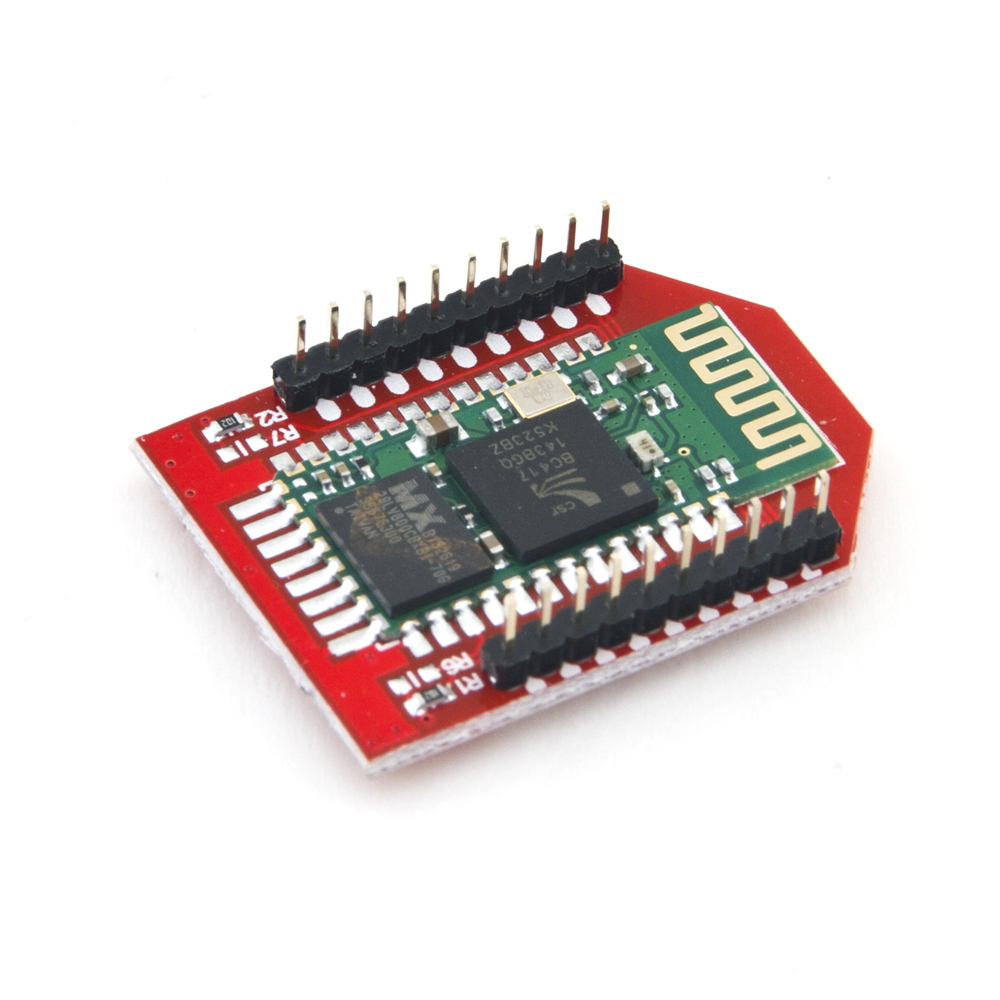

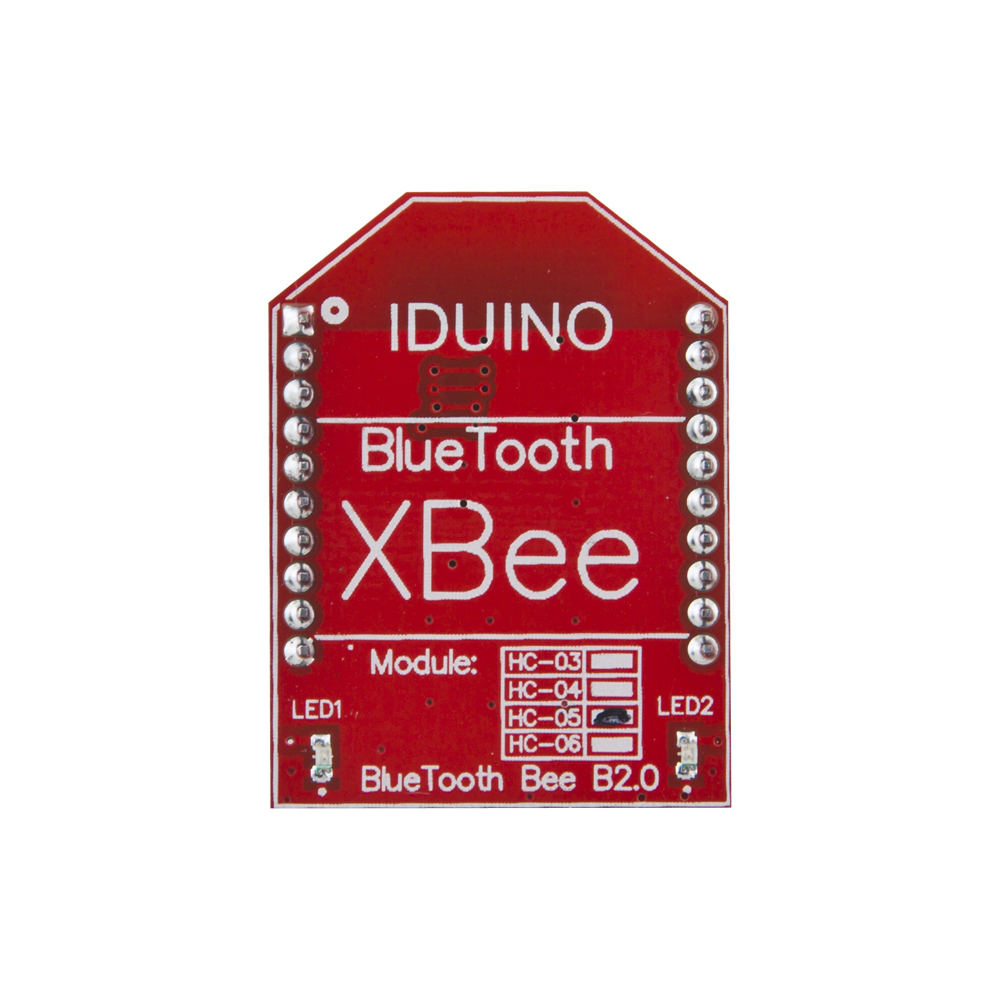

IDUINO Bluetooh XBee Bluetooth wireless module HC-05 adopts XBEE design. It has features of compact size, compatible with XBEE shield, and suitable for various  3.3V MCU systems. The module can use AT command to set baud rate and master/slave mode, user info etc. The default settings are baud rate 38400, paring password 1234.

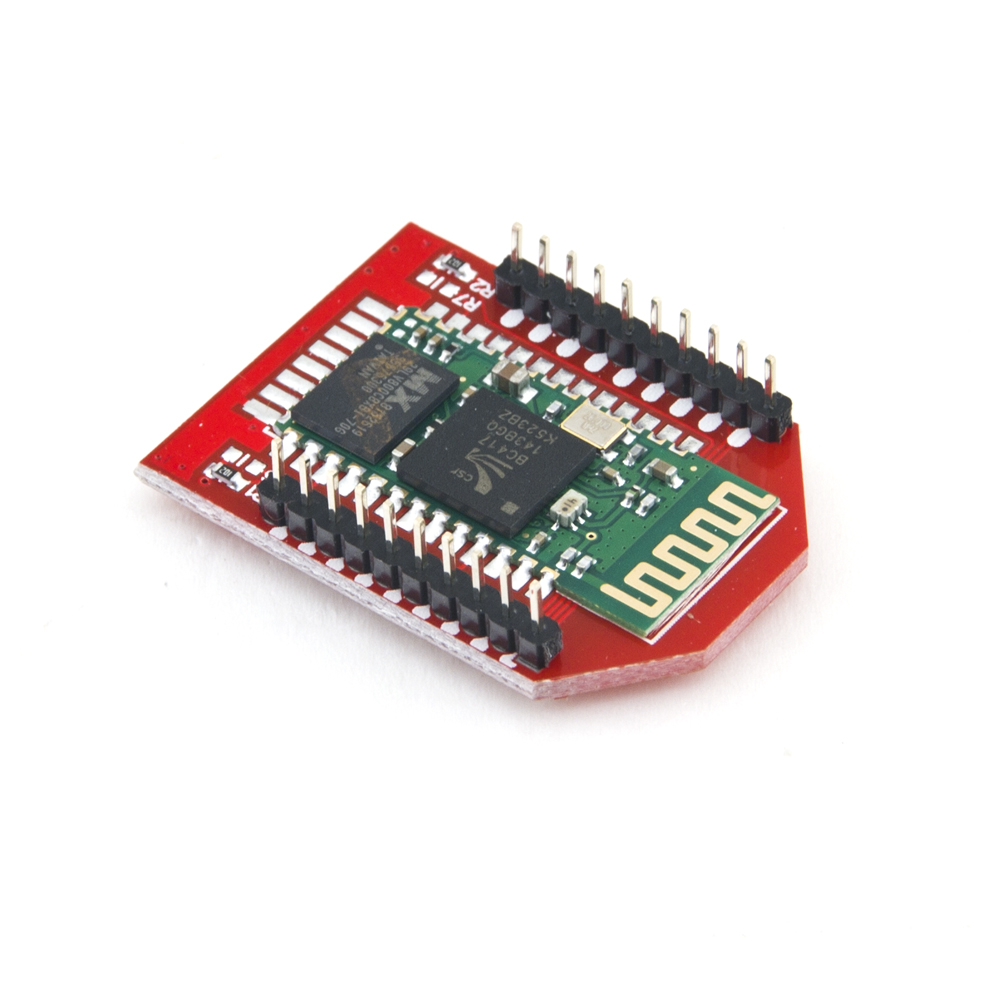

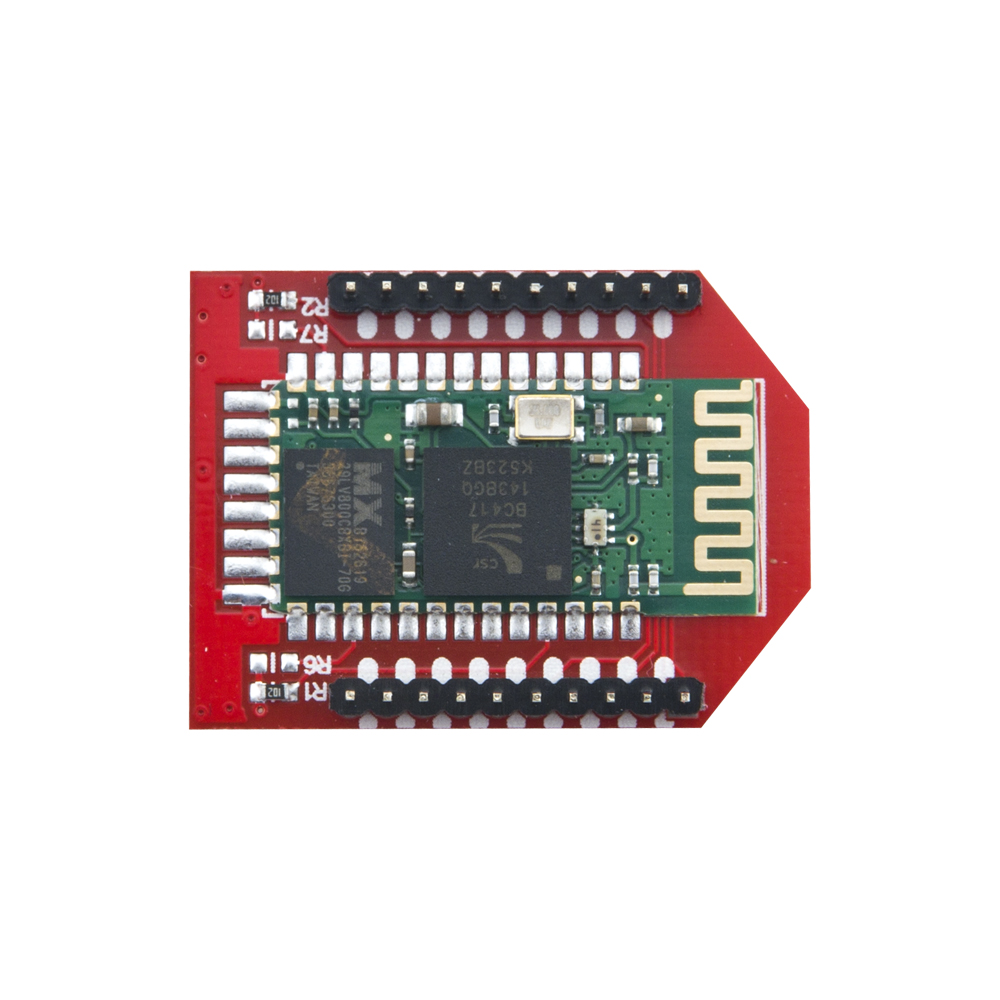

It comes with efficient on-board antenna. The exposed antenna ensures better signal quality and longer transmitting distance. Transparent serial port can be used to pair up with various Bluetooth adapters, Bluetooth phones. The humanized design offers convenience for secondary development.

After testing, the module is known to be suitable in using with all Bluetooth adapters on the market (PC and phones with Bluetooth) .

Specification

Supply voltage: 3.3V (voltage above 3.3V is forbidden. It will damage the module)

Bluetooth paring user name: HC-05

Bluetooth paring password: 1234

Default baud rate: 38400

Modified baud rate takes effect after module reboot
