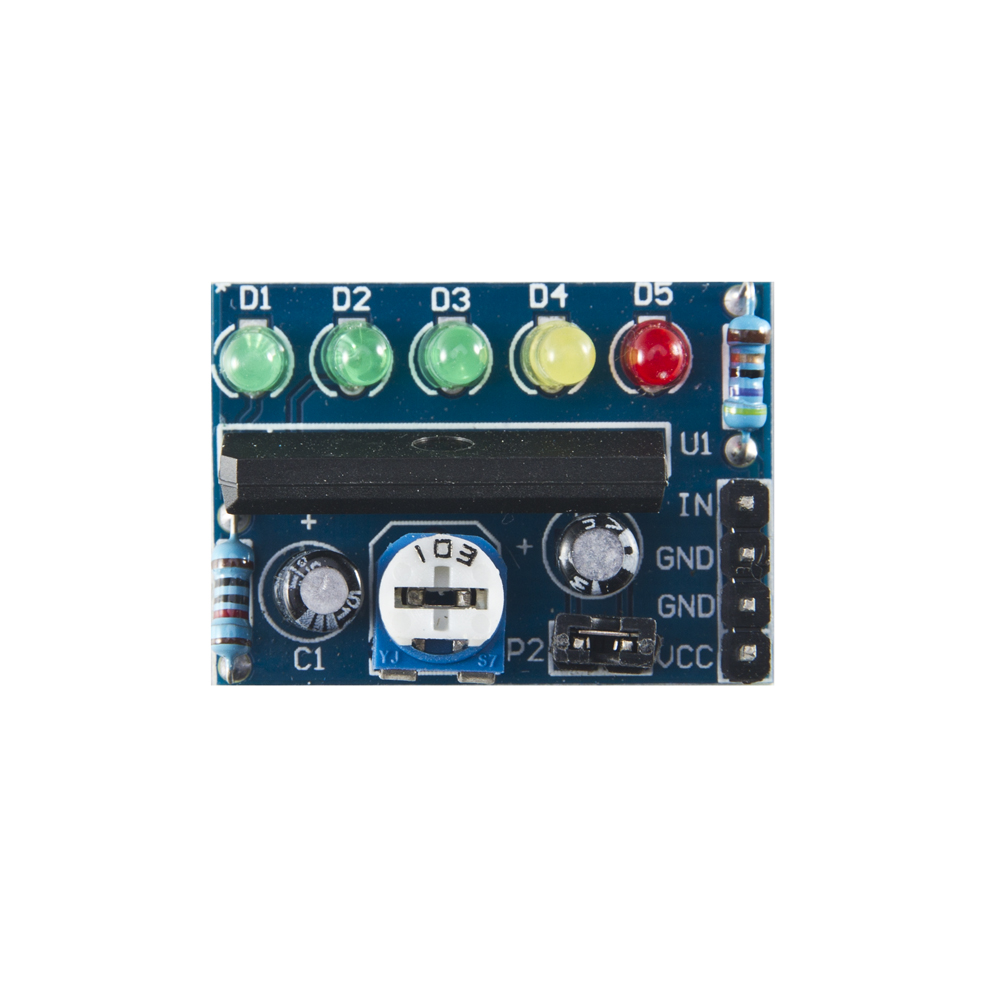

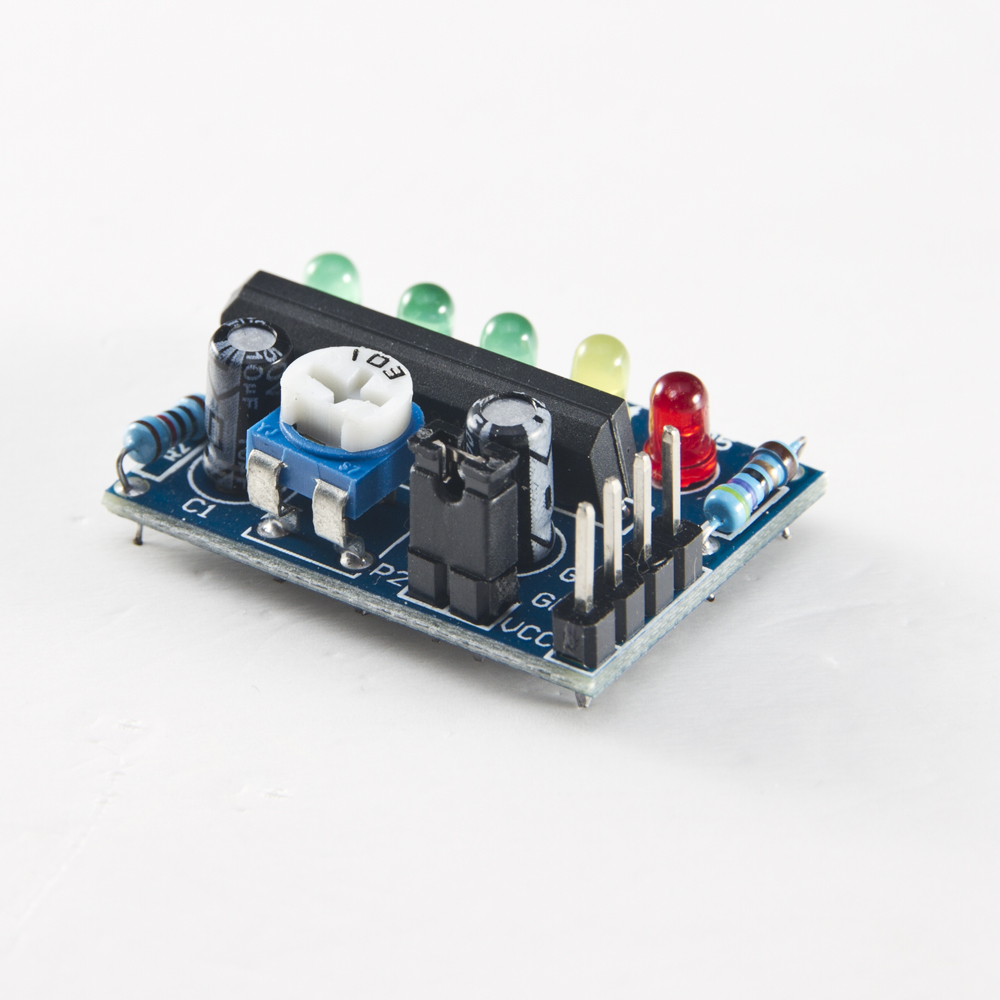

KA2284 level indicator module details

The KA2284 battery level indicator contains five LED lights that progressively light up as the voltage increases. The AC and DC input of this module can be selected by a jumper and it can handle voltages that range from 3.5 V to 12 V.

• KA2284 chip • Supply Voltage Range: 3.5 V to 12

• Adjustable power level span

• AC and DC input can be controlled by a jumper

• PCB Size: 29 x 21 mm

Annex:

Tag:

KA2284 level indicator module
