Three axis acceleration ADXL335 module details

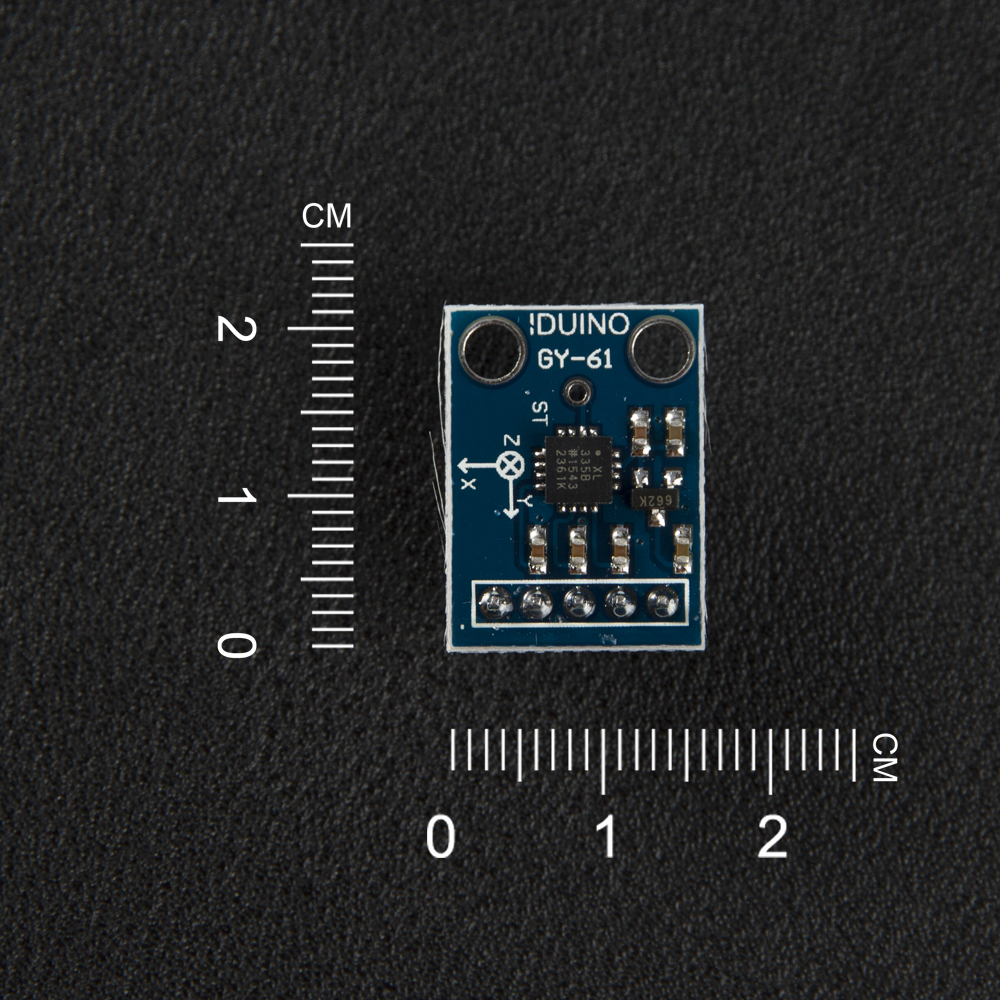

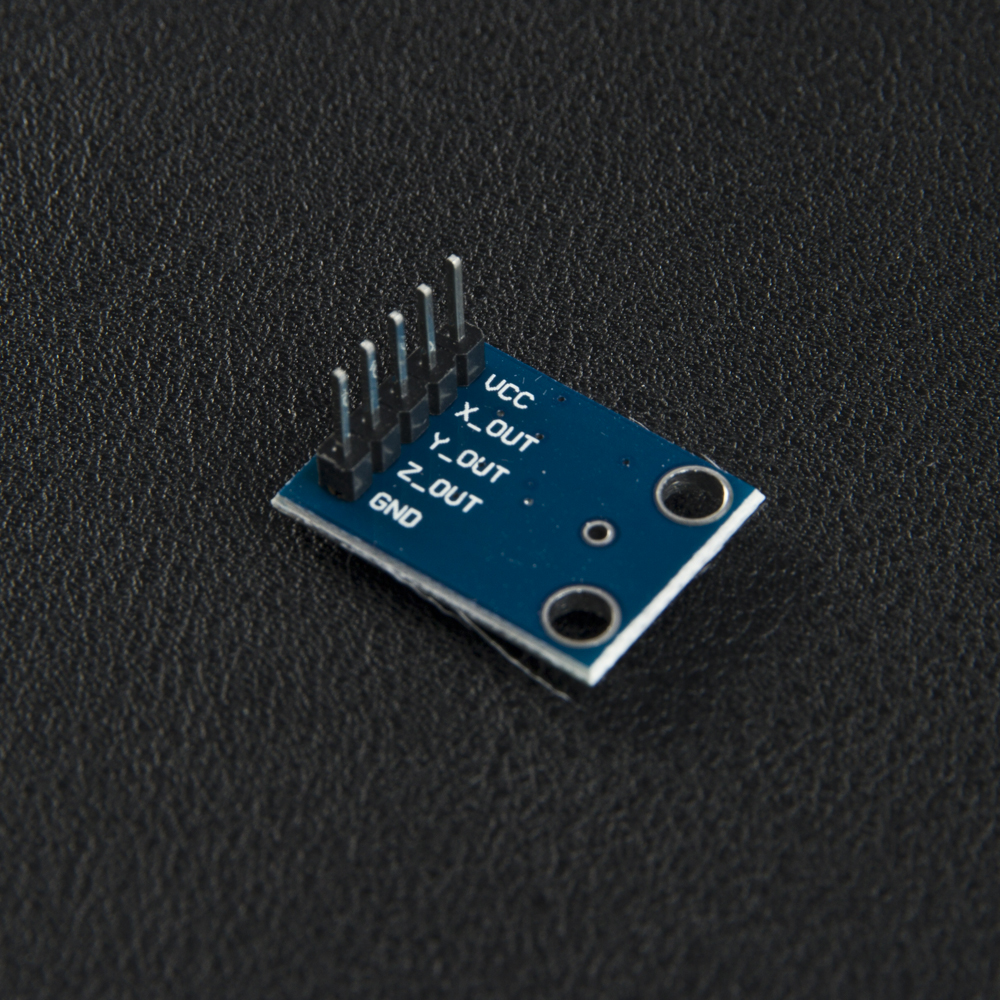

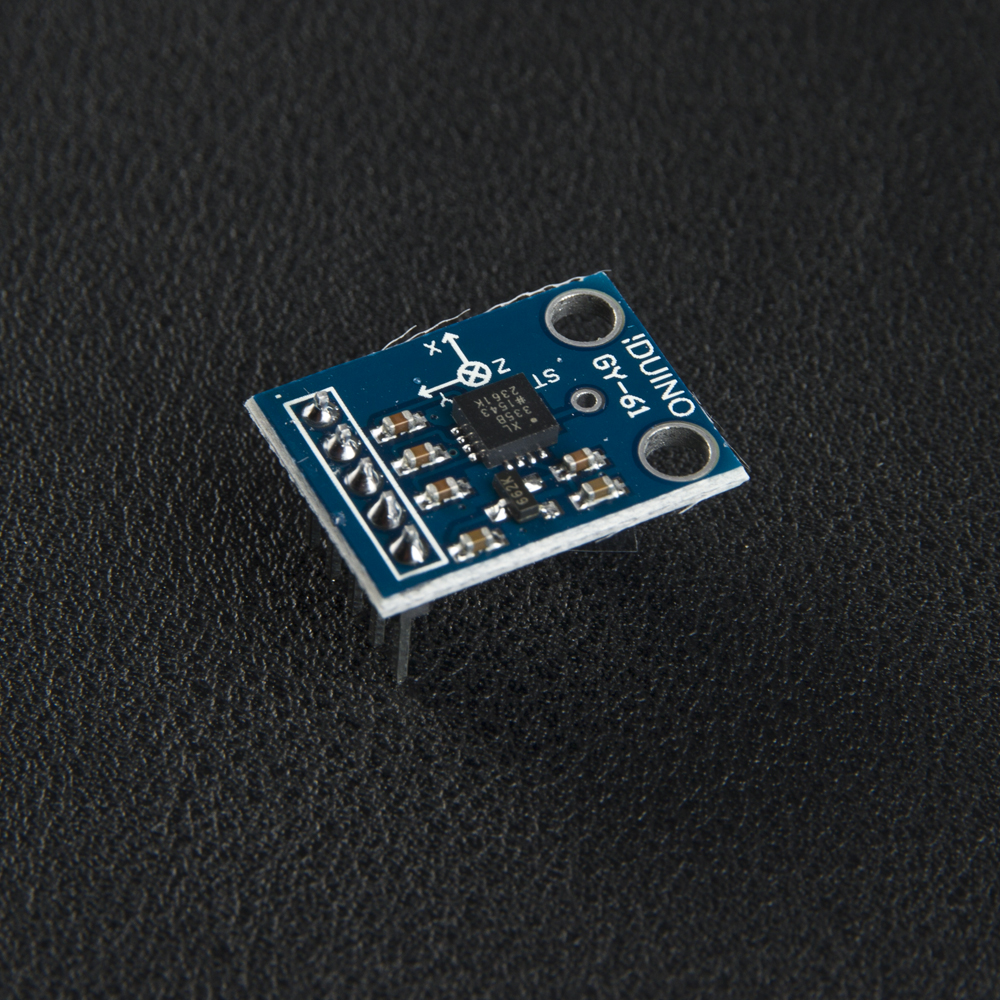

This module comes with 3 analog outputs for X, Y and Z axis measurements on a 0.75"x0.75" breakout board. The ADXL335 is the latest and greatest from Analog Devices, known for their exceptional quality MEMS devices. The VCC takes up to 5V in and regulates it to 3.3V with an output pin. The analog ratiometric: that means hat 0g measurement output is always at half of the 3.3V output (1.65V),-3g is at 0v and 3g is at 3.3V with full scaling in between.
