FTDI Basic Program Downloader USB to TTL FT232 for Arduino details

Arduino FTDI Basic program downloader USB to TTL FT232

Product performance:

Standard interface, compatible with all kinds of official Arduino controller

Original FT232 chips, stable performance

With a power supply, send, receive light, working condition be clear at a glance

With 3.3 V and 5 V power supply options

To do turn ordinary USB serial port using TTL module, download on STC microcontroller

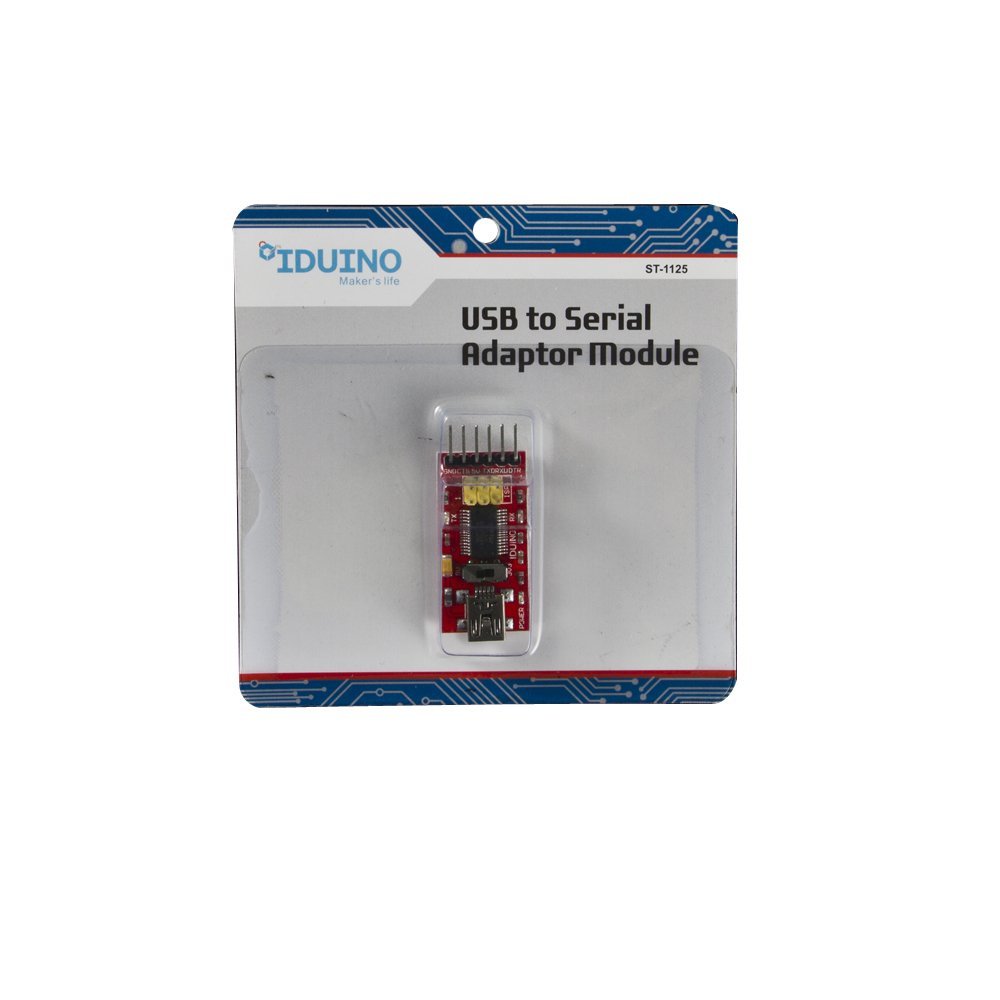

Packing list:

1 FTDI Basic program downloader

MiniUSB cable 1 root

【 FT232R introduction 】

With the development of computer technology, parallel and serial port in PC slowly disappeared, even little parallel desktop now. But for engineers, parallel and serial interface are indispensable, especially in the serial port. With no serial port of computer, the most convenient solution is to use virtual a serial port turn USB serial interface chip to come out, many manufacturers have to produce such chips, such as silicon LABS CP210x series, TI TUSB3410, nanjing this constant CH34x series, FTDI FT232 series, the Prolific PL230x series, apotheker ARK3116, and so on. From the stability point of view, or the most reliable FT232 series, it can be used to ease debugging programs without having to worry about the blue screen.

FT232R chip is a single chip solution, the general basic don't need to use peripherals, crystals, USB matched resistors, place the product information block in the EEPROM has been integrated in the internal. FT232R some useful functions, the details can see FT232R data manual.

Data manual download address: http://www.ftdichip.com/Products/ICs/FT232R.htm

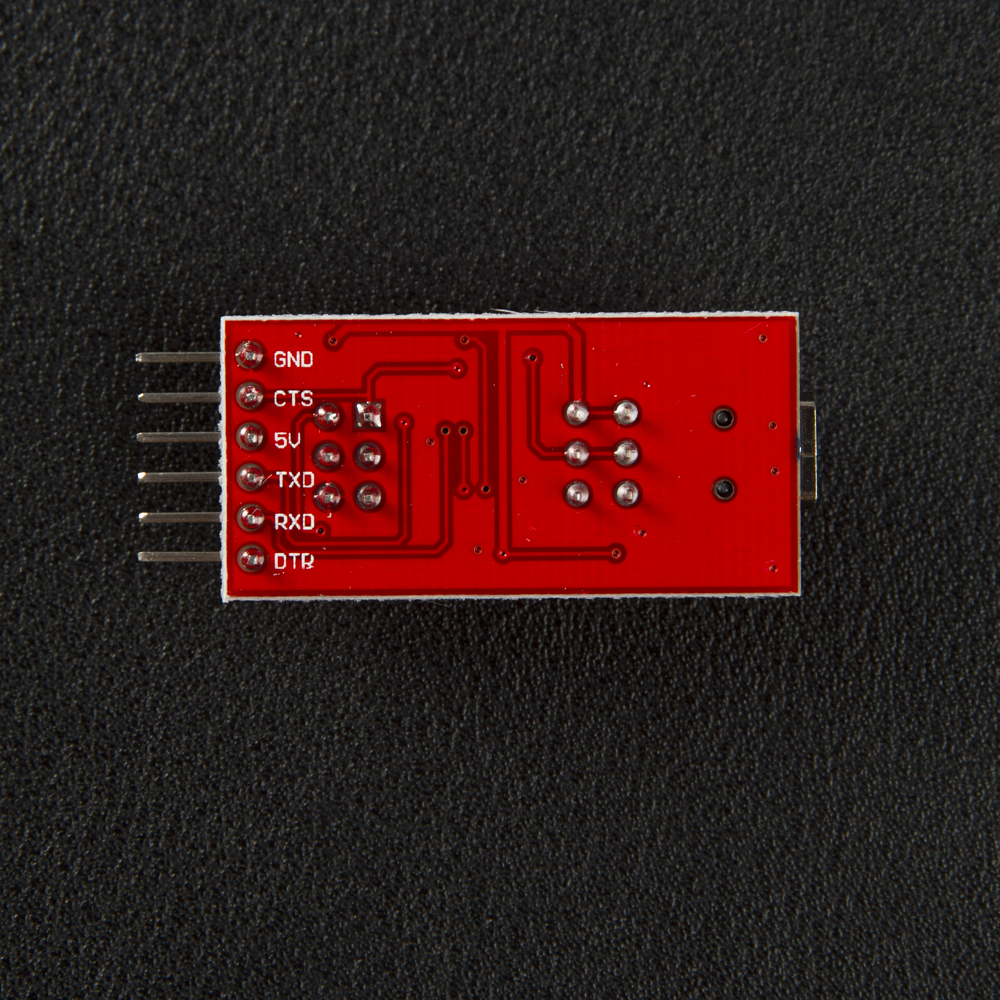

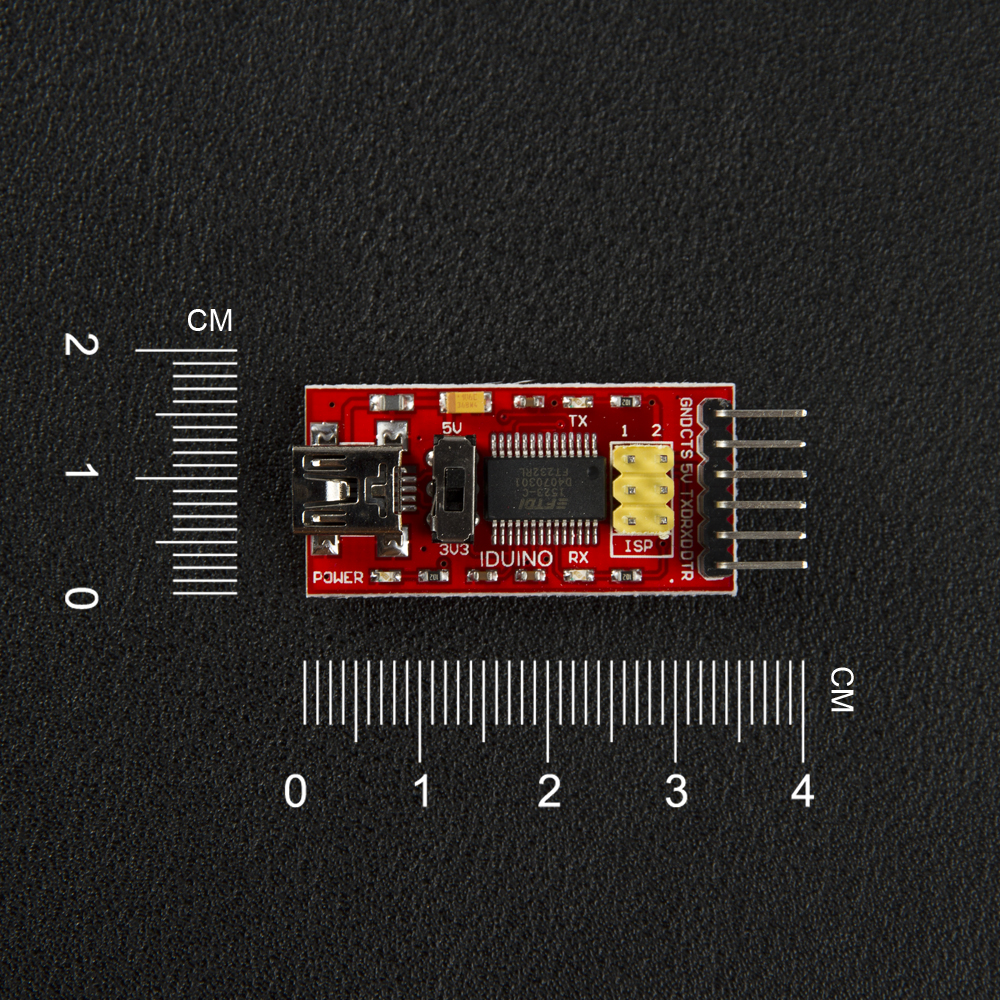

【 introduction 】 hardware

, adopts FTDI corporation FT232RL chips;

All lead to FT232RL chip signal port, TTL/CMOS level;

RXD/TXD transceiver communication indicator light;

USB power supply, optional interface 5 V or 3.3 V level (if you need any other level, can be directly on the VCC &gnd pin the target voltage).

【 introduction 】 software

· FT232R Windows driver;

Serial debugging software.
