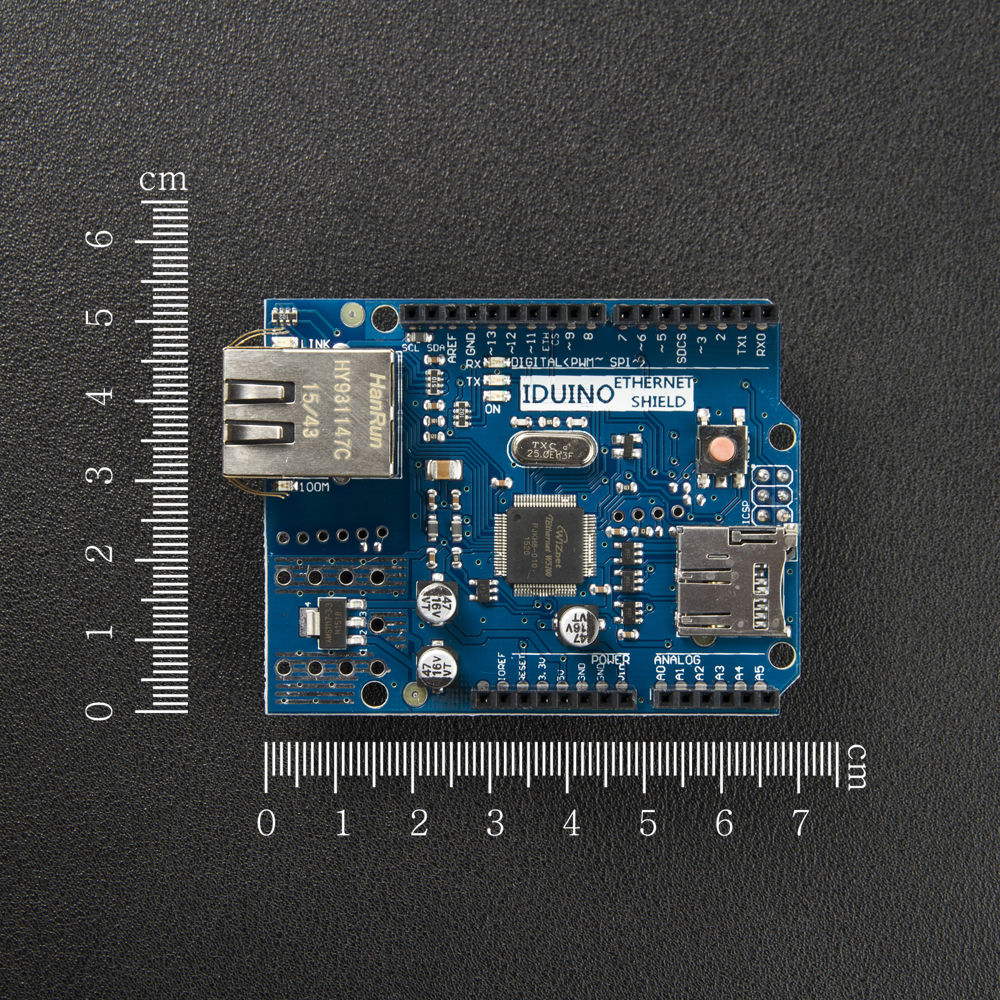

Ethernet W5100 R3 Shield Network Board Supports MEGA details

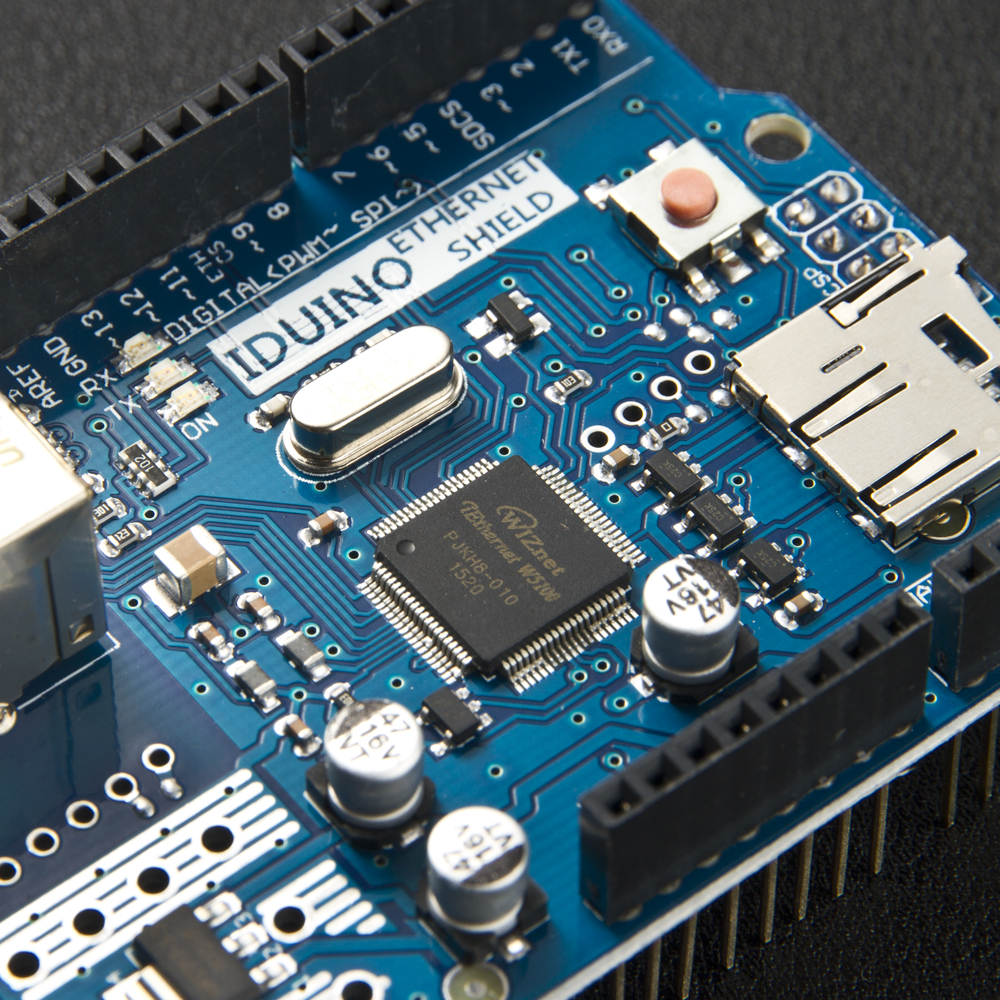

Arduino Ethernet extension board can let the Arduino controller to connect to the Internet. It is a built-in WizNet W5100 TCP/IP the extension of the microprocessor board. This board by long stitch row mother (wire wrap the header) connect the arduino board. Use Arduino ides Ethernet library application can easily use this extension plate connected to the network. This extension plate support four socket connection at the same time.And have been added to the R3 version of the extended board is composed of four additional port version 1.0 standard output port: 2 is located in the edge of the ARFF 2 is located in the edge of the RESET. RESET at the edge of the two ports, one is IOREF, used to adapt extension plate to the motherboard. Another empty port reserved for future expansion.

This latest version of the new micro - SD card slot, with the network storage function. In addition, it and the Arduino Duemilanove, Mega series also fully compatible. It also has a separate PoE (power over Ethernet) module. The module can be welded to the motherboard to transmit electricity through twisted-pair cable. It is up to the standard of IEEE802.3 af and PoE module of existing and compatible.

Technical specifications

With the Arduino Mega2560 / Uno rev3 compatible standard output port

With functions of active voltage converter of micro - SD card connector PoE reset the controller

Compatible with the Arduino MEGA board
