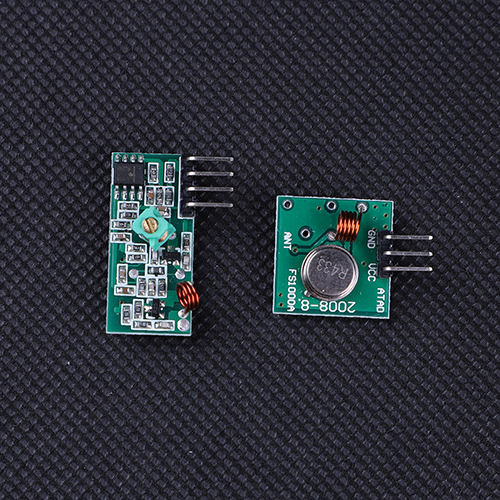

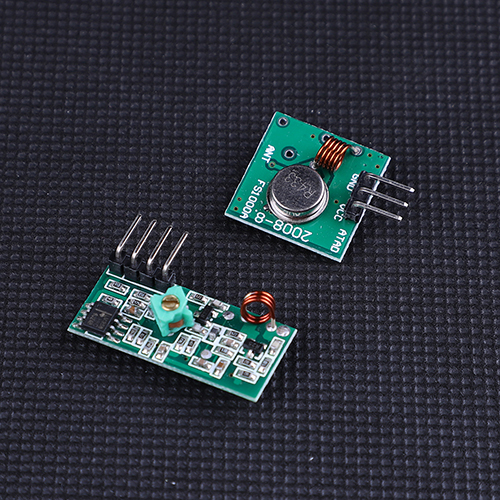

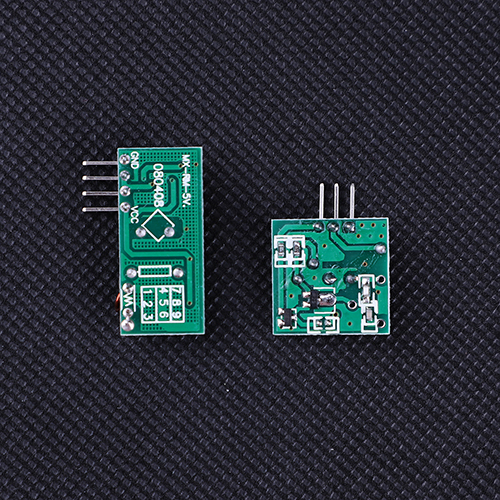

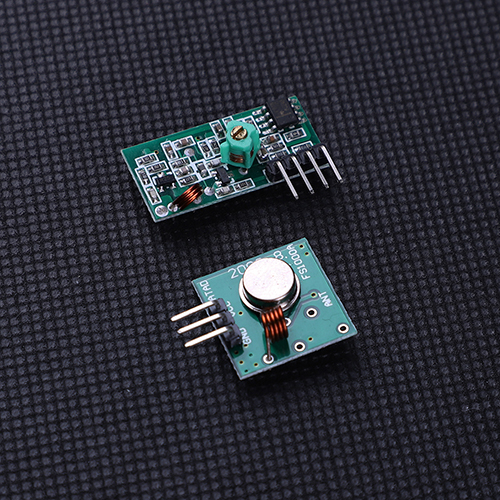

433MHz transmitter receiver module
Item No.: ME135
Receiver module
• Product Model: XD-RF-5V
• Operating voltage: DC5V
• Quiescent Current: 4MA
• Receiving frequency: 433.92MHZ
• Receiver sensitivity: -105DB
• Size:30x14x7mm
• Transmitter Technical parameters of
• Product Model: XD-FST
• Launch distance: 20-200 meters (different voltage, different results)
• Operating voltage :3.5-12V
• Dimensions: 19x19mm
• Operating mode: AM
• Transfer rate: 4KB / S
• Transmitting power: 10mW
• Transmitting frequency: 433M
• Pinout from left → right: (DATA; VCC; GND)
• Product Model: XD-RF-5V
• Operating voltage: DC5V
• Quiescent Current: 4MA
• Receiving frequency: 433.92MHZ
• Receiver sensitivity: -105DB
• Size:30x14x7mm
• Transmitter Technical parameters of
• Product Model: XD-FST
• Launch distance: 20-200 meters (different voltage, different results)
• Operating voltage :3.5-12V
• Dimensions: 19x19mm
• Operating mode: AM
• Transfer rate: 4KB / S
• Transmitting power: 10mW
• Transmitting frequency: 433M
• Pinout from left → right: (DATA; VCC; GND)
