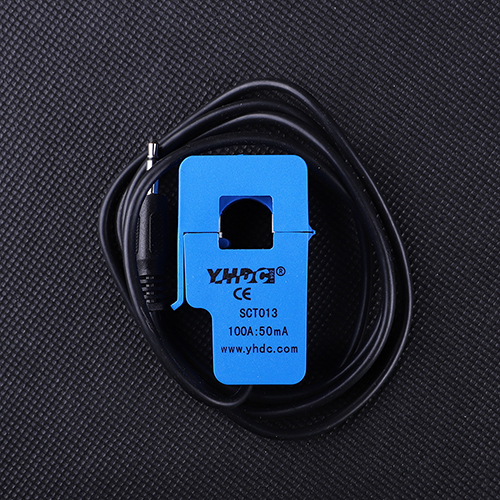

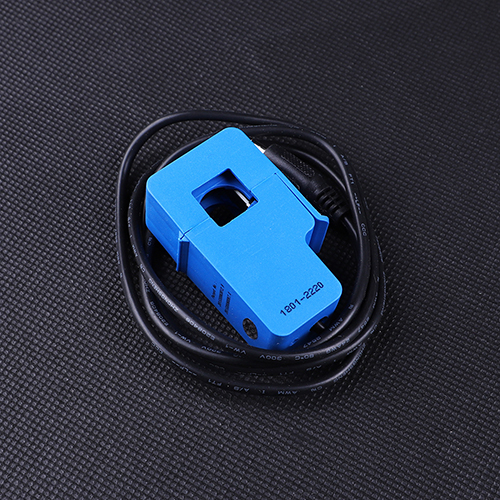

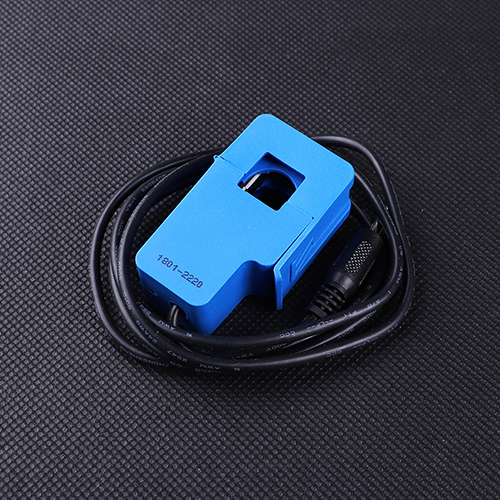

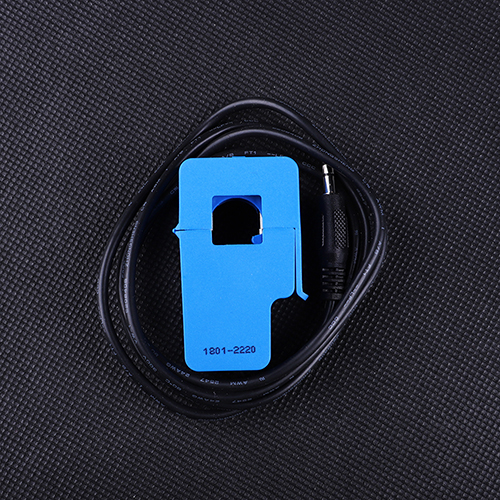

Non-invasive AC Current Sensor (100A max)
Item No.: ME207
• Input Current: 0~100A AC • Output Mode: 0~50mA • Non-linearity: ±3% • Turn Ratio: 100A:0.05A • Resistance Grade: Grade B
• Work Temperature: -25℃ ~ ﹢70℃ • Dielectric Strength(between shell and output): 1000V AC/1min 5mA • Leading Wire in Length: 1m
• Open Size: 13mm x 13mm
• Work Temperature: -25℃ ~ ﹢70℃ • Dielectric Strength(between shell and output): 1000V AC/1min 5mA • Leading Wire in Length: 1m
• Open Size: 13mm x 13mm
