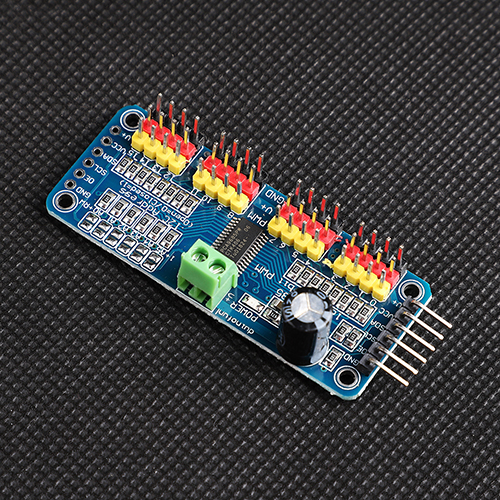

Servo Motor Driver PWM 16 Channel 12-Bit PCA9685

Item No.: ME234

Power input terminals.
The green power light.
Reverse polarity protection input in a patch panel.
3 pin connectors in groups of 4 so you can plug-in in 16 servos at once (Servo plugs are slightly wider than 0.1 "so you can only stack 4 next to each
other on 0.1" header.
Cascade design.
V + online to place a large capacitance, peripheral input maximum voltage depends on the 10 V 1000 uf capacitance, all PWM output line put

a 220 ohm resistor to protect them, and drive leds easily.

Features:
• Input Voltage: 3 - 5v • Frequency: 40 - 1000Hz • Resolution: 12 bit • Dimension: 60mm x 25mm • Weight: 12g
