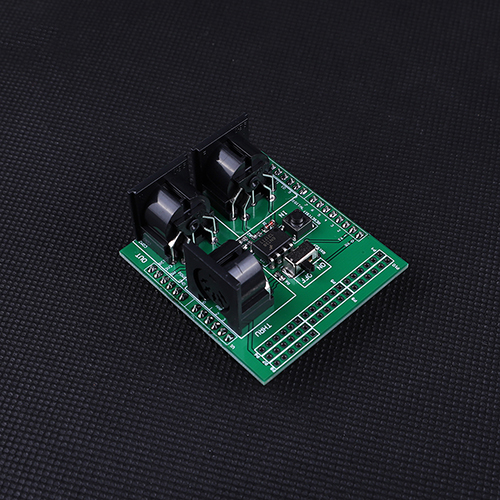

MIDI Shields Adapter Board Compatible with Arduino®

Through the MIDI adapter plate, your Arduino® board or other microcontrollers can be accessed to powerful MIDI communication protocol. MIDI
protocol and asynchronous serial interface has many similarities, so users can use the micro-controller UART pin to send MIDI event information.
MIDI adapter plate provides MIDI - IN and MIDI - OUT connection, and MIDI THRU port. MIDI - port is light IN isolation, to prevent the ground loop.
MIDI adapter plate can be installed directly like a shield at the top of the Arduino® board: connect MIDI - IN/THRU to for Arduino® hardware RX pin,
connect MIDI - OUT to TX. It Arduino data and analog pin, power bus and the bus can transfer out. The RUN/PGM switch can let users on the for
Arduino® board serial port programming, without having to remove the board. Note: the three hole MIDI connector no welding on the MIDI adapter
plate, but these connectors included in this product.
