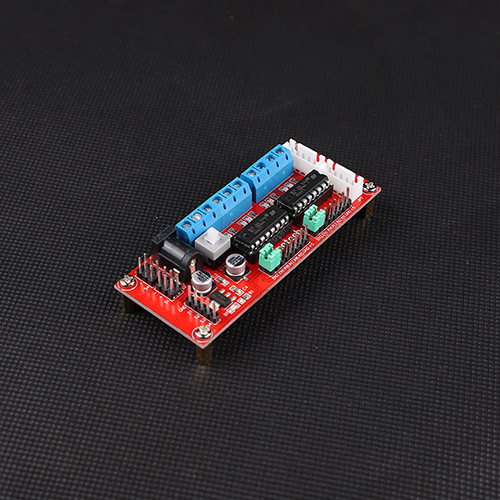

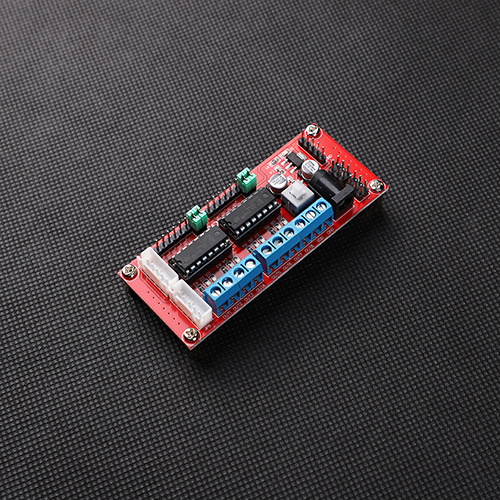

4WD DC Power Supply Motor Driver Module
Item No.: EX031
• Driver chips: L293D dual H-bridge DC motor driver chip • Driven part of the terminal supply area Vs: +5 V ~ +16 V; such as the need to take power
within the board, the supply area Vs: 6V to 16V • Drive part of the peak current Io: 1A • Logical part of the operating current range: 0 ~ 36mA
• Control signal input voltage range (IN1 IN2 IN3 IN4IN5 IN6 IN7 IN8): • Low level: -0.3V VIN 1.5V • High level: 2.3V Vin Vss • Enable signal input voltage
range (EN1 EN2EN3 EN4): • Low level: -0.3 Vin 1.5V (control signal is invalid) • High level: 2.3V Vin Vss (control signal) • Dimensions: 92 x 38 x 17mm
within the board, the supply area Vs: 6V to 16V • Drive part of the peak current Io: 1A • Logical part of the operating current range: 0 ~ 36mA
• Control signal input voltage range (IN1 IN2 IN3 IN4IN5 IN6 IN7 IN8): • Low level: -0.3V VIN 1.5V • High level: 2.3V Vin Vss • Enable signal input voltage
range (EN1 EN2EN3 EN4): • Low level: -0.3 Vin 1.5V (control signal is invalid) • High level: 2.3V Vin Vss (control signal) • Dimensions: 92 x 38 x 17mm
