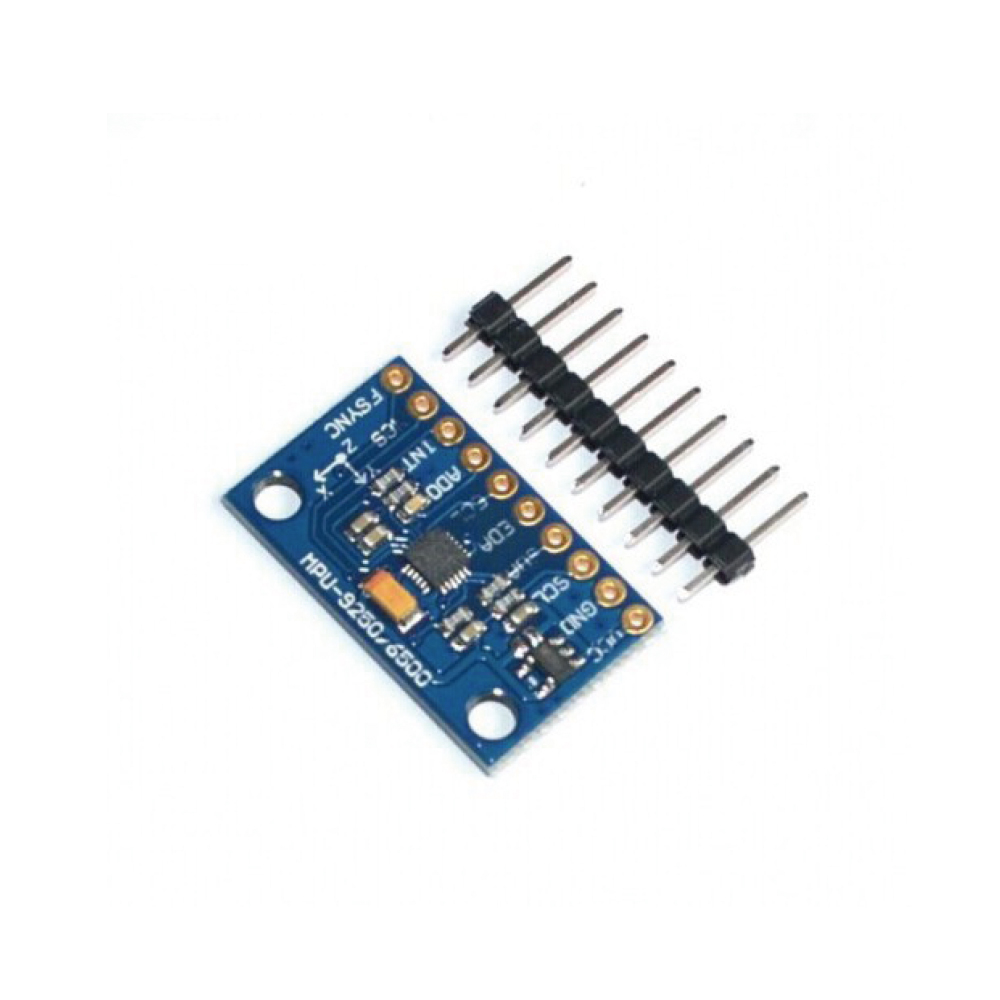

Mpu9250 9-axis 9dof Acc, Gyro, Compass Module
Item No.: AD083
Module Pinout:
• VCC......3.6 to 6V supply (on-board 3.3V regulator) • GND......0V • SCL......I2C serial clock • SDA......I2C serial data • EDA......Auxiliary I2C master serial data
• ECL......Auxiliary I2C Master serial clock • AD0......I2C Slave Address LSB (AD0) • INT......Interrupt digital output (totem pole or open-drain)
• NCS.....Chip select (SPI mode only) • FSYNC..Frame synchronization digital input. Connect to GND if unused.
• VCC......3.6 to 6V supply (on-board 3.3V regulator) • GND......0V • SCL......I2C serial clock • SDA......I2C serial data • EDA......Auxiliary I2C master serial data
• ECL......Auxiliary I2C Master serial clock • AD0......I2C Slave Address LSB (AD0) • INT......Interrupt digital output (totem pole or open-drain)
• NCS.....Chip select (SPI mode only) • FSYNC..Frame synchronization digital input. Connect to GND if unused.
