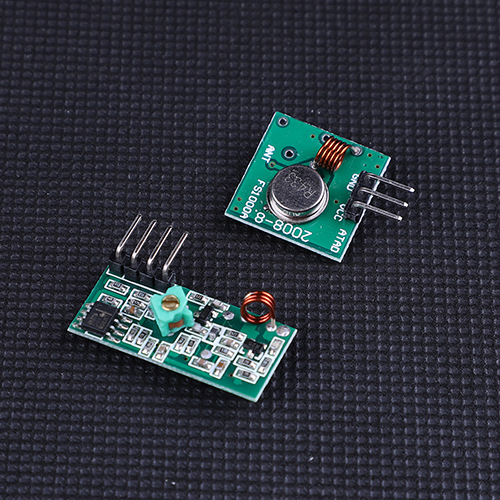

433MHz transmitter receiver module
Item No.: ME135
Receiver module
• Product Model: XD-RF-5V • Operating voltage: DC5V • Quiescent Current: 4MA • Receiving frequency: 433.92MHZ • Receiver sensitivity: -105DB
• Size:30x14x7mm
Transmitter
Technical parameters of
• Product Model: XD-FST • Launch distance: 20-200 meters (different voltage, different results) • Operating voltage :3.5-12V • Dimensions: 19x19mm
• Operating mode: AM • Transfer rate: 4KB / S • Transmitting power: 10mW • Transmitting frequency: 433M • Pinout from left → right: (DATA; VCC; GND
• Product Model: XD-RF-5V • Operating voltage: DC5V • Quiescent Current: 4MA • Receiving frequency: 433.92MHZ • Receiver sensitivity: -105DB
• Size:30x14x7mm
Transmitter
Technical parameters of
• Product Model: XD-FST • Launch distance: 20-200 meters (different voltage, different results) • Operating voltage :3.5-12V • Dimensions: 19x19mm
• Operating mode: AM • Transfer rate: 4KB / S • Transmitting power: 10mW • Transmitting frequency: 433M • Pinout from left → right: (DATA; VCC; GND
