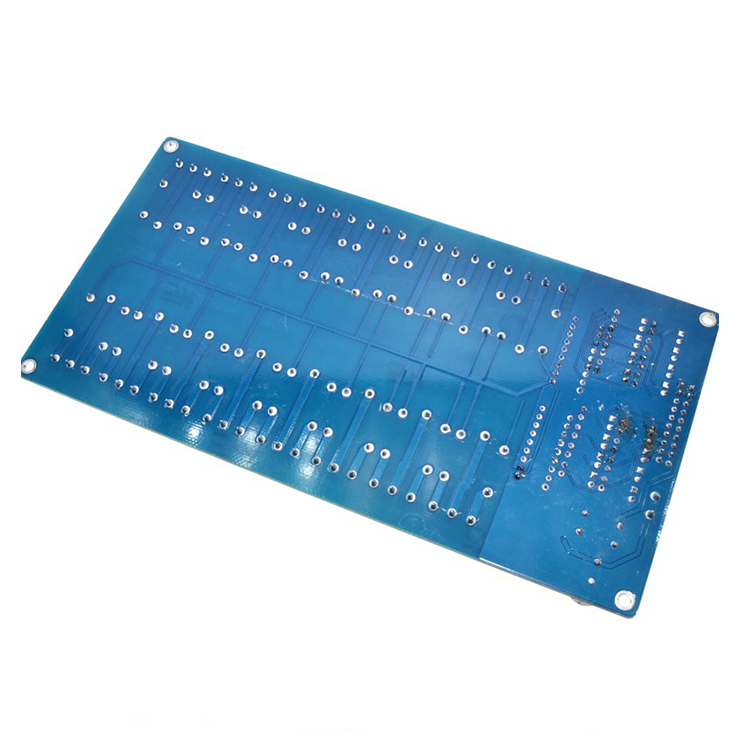

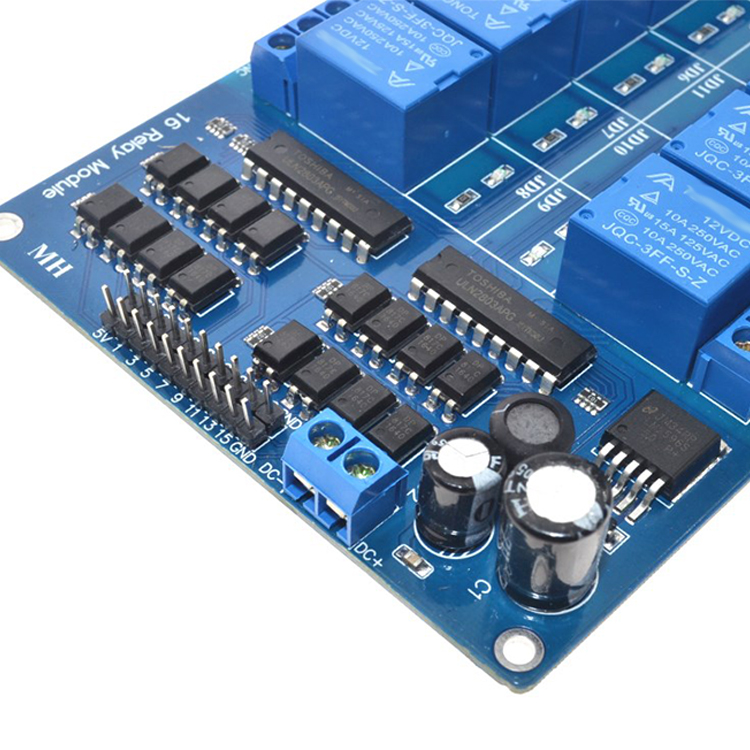

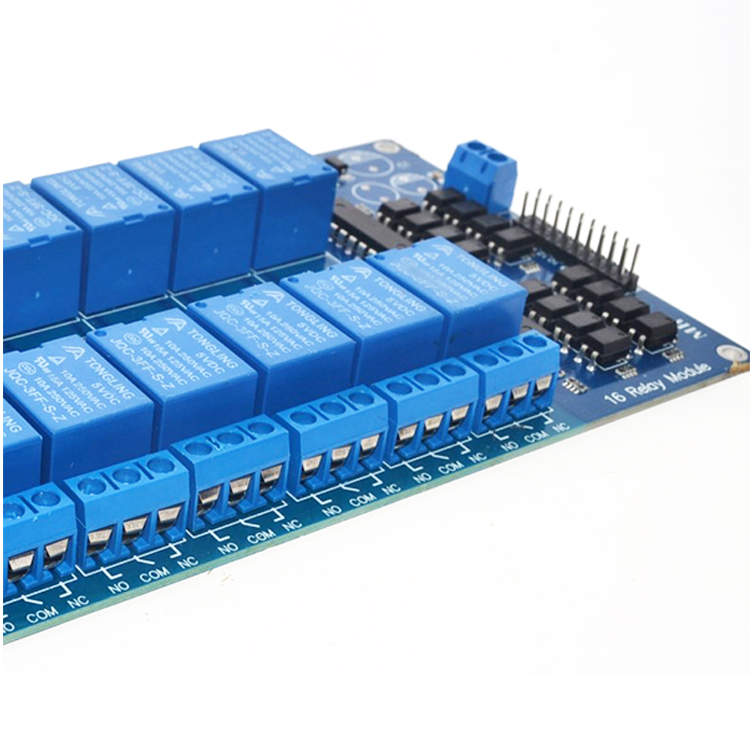

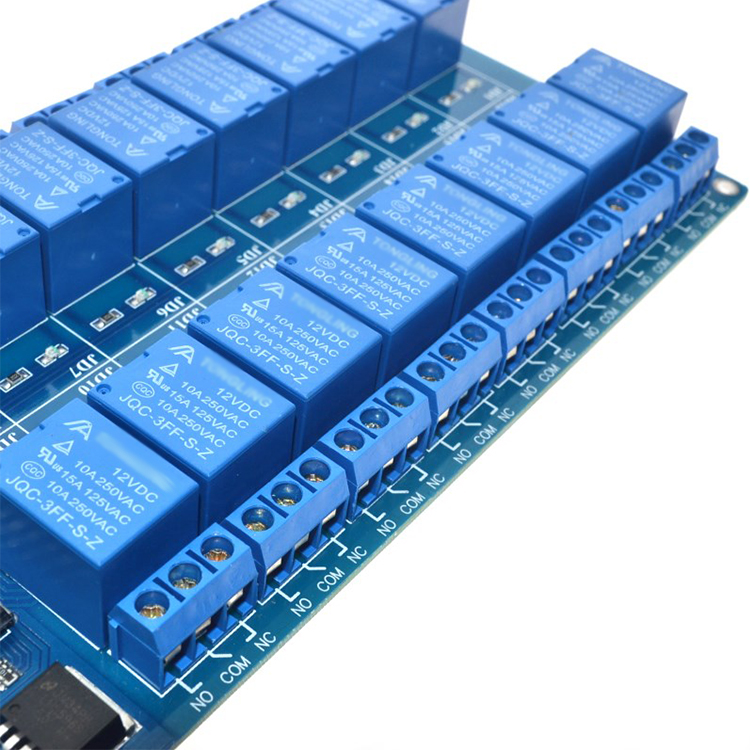

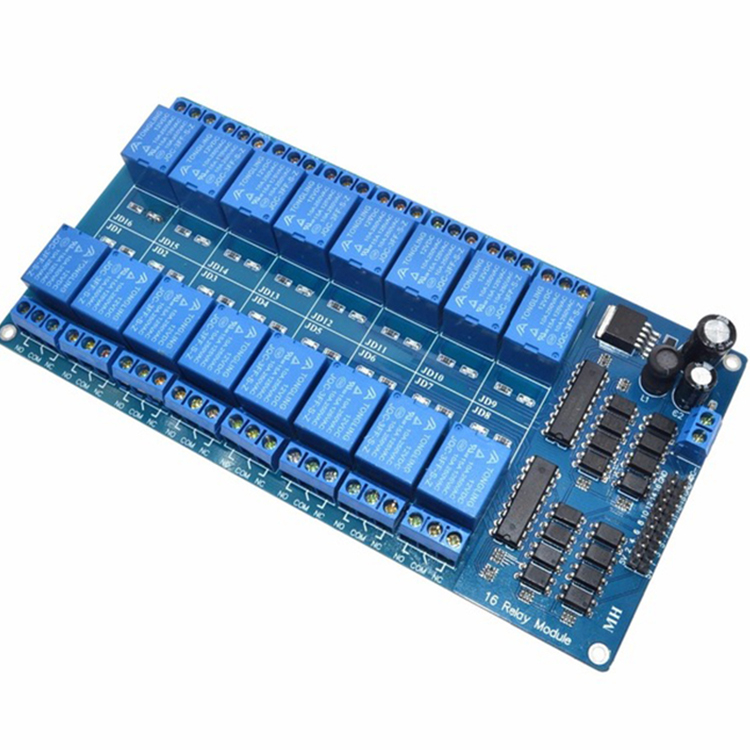

16 channel Relay Control Board with Optocoupler Protection and a LM2576 Power Supply details

Relay is an automatic switching element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechanical and electrical integration and power electronic equipment, and it is one of the most important control components. The relay module can be connected to the 240V AC or 28V DC power supply to control all kinds of other electrical components. And the single chip microcomputer can be used to control the switch. The relay module can also be used in anti-theft, alarm, toys, construction and other fields.

 2. Parameters:

Nominal voltage: 7~30V

Product series: 16channel relay

Rated current: 1.5A

Contact switch current: 250V

Contact load: 10A

power converter: need

Drive voltage: 5V

Optocoupler: With optocoupler protection

Aduino test code:

int BASE = 2 ; //the first relay contact with I/O pin

int NUM = 16; // Number of relays

void setup()

{

for (int i = BASE; i < BASE + NUM; i ++)

{

pinMode(i, OUTPUT); //define I/O pin as output

}

}

void loop()

{

for (int i = BASE; i < BASE + NUM; i ++)

{

digitalWrite(i, LOW); //define I/O pin prints “LOW”, gradually turns off relay

delay(200); //delay

}

for (int i = BASE; i < BASE + NUM; i ++)

{

digitalWrite(i, HIGH); // define I/O pin prints “HIGH”, gradually turns on relay

delay(200); //delay

}

}
