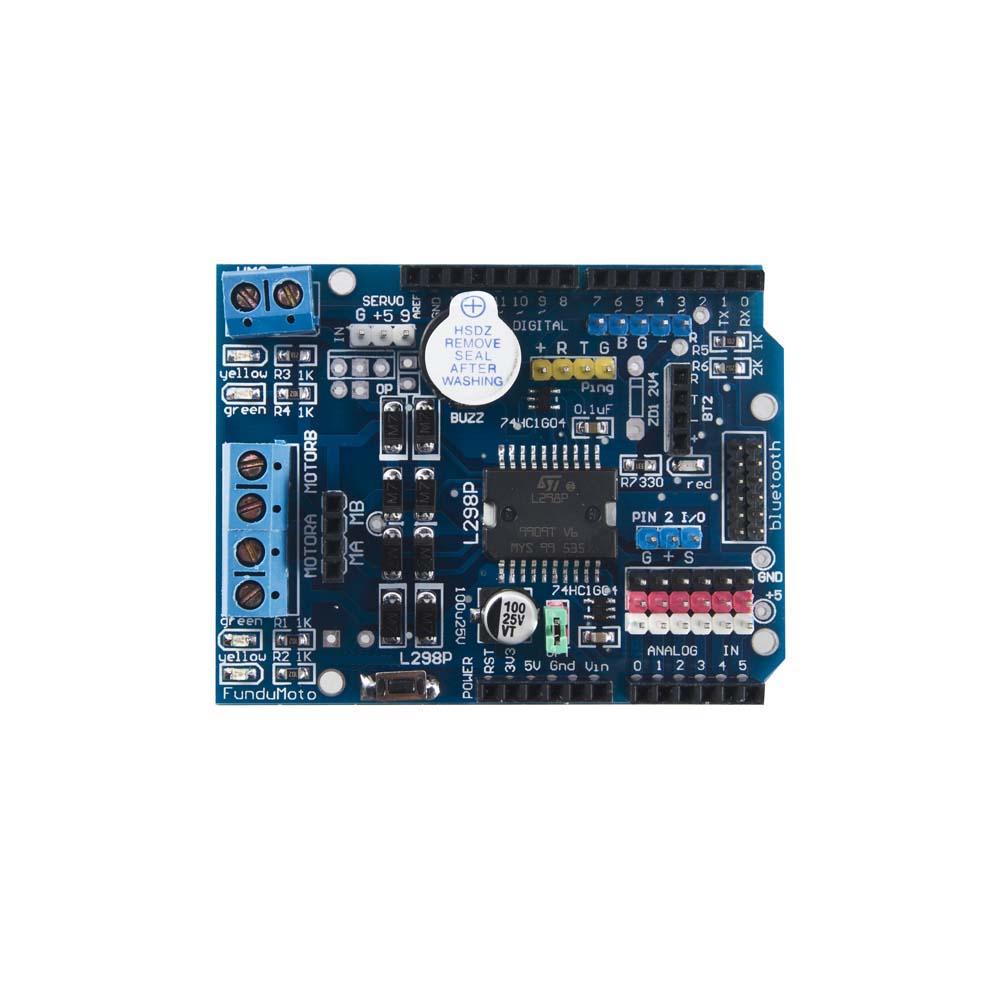

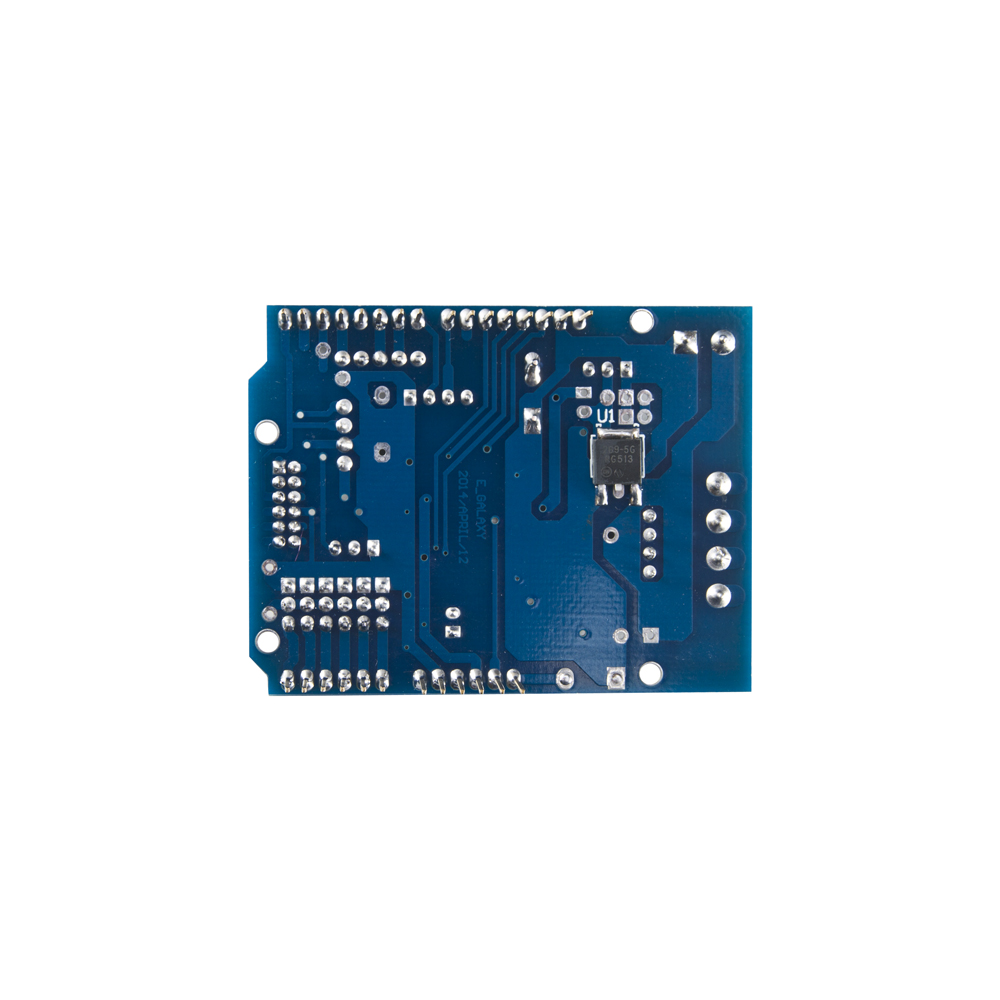

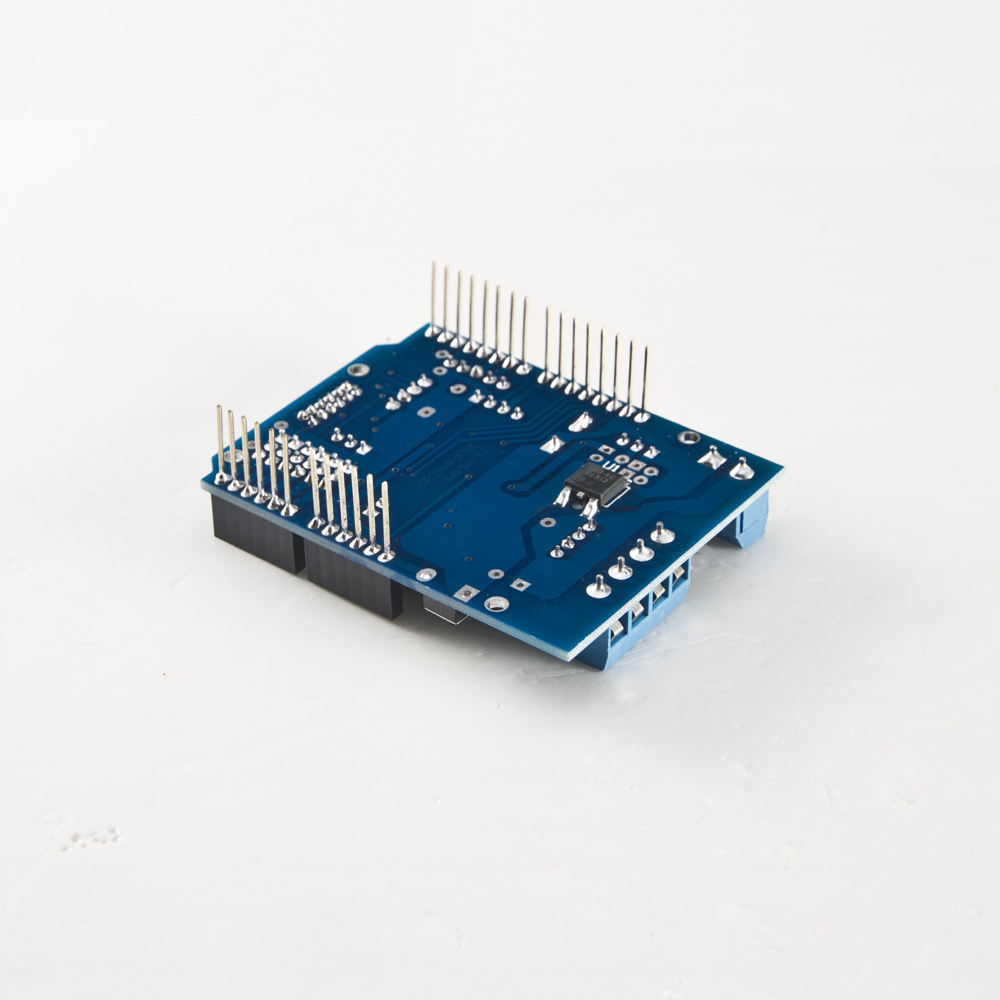

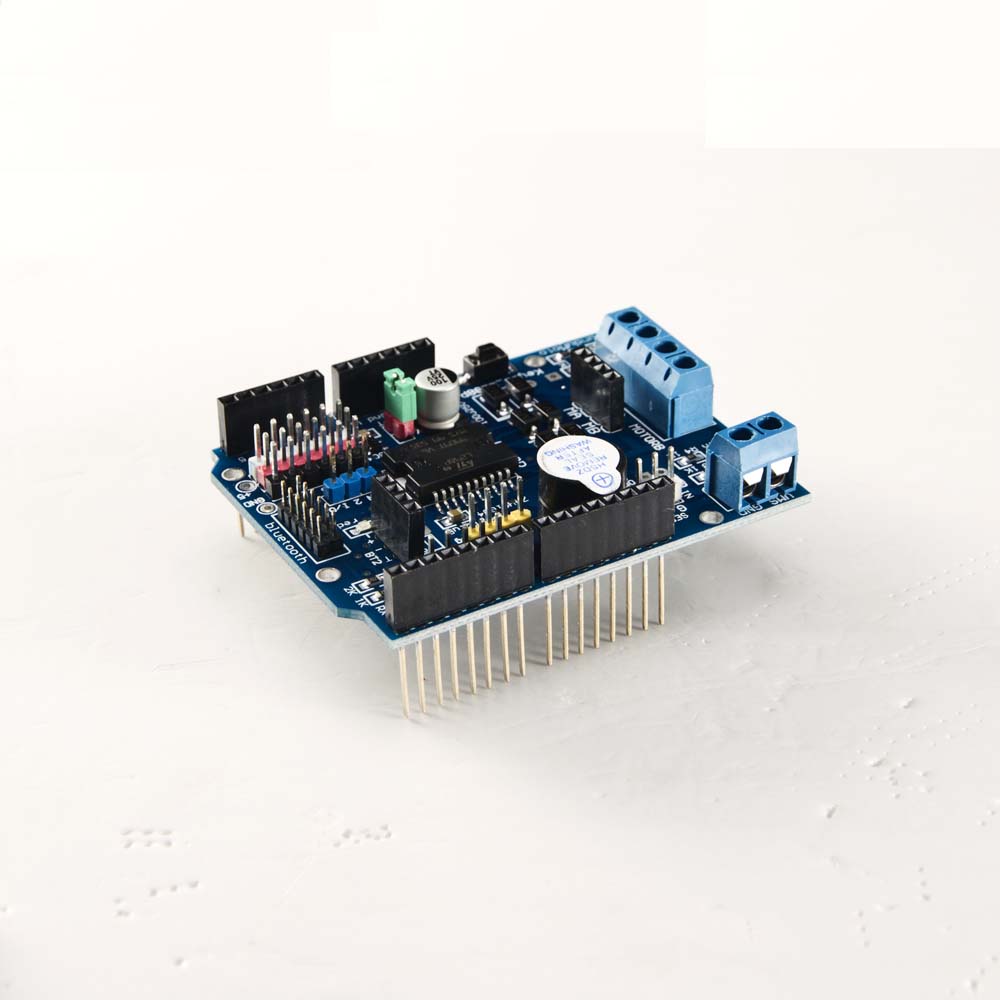

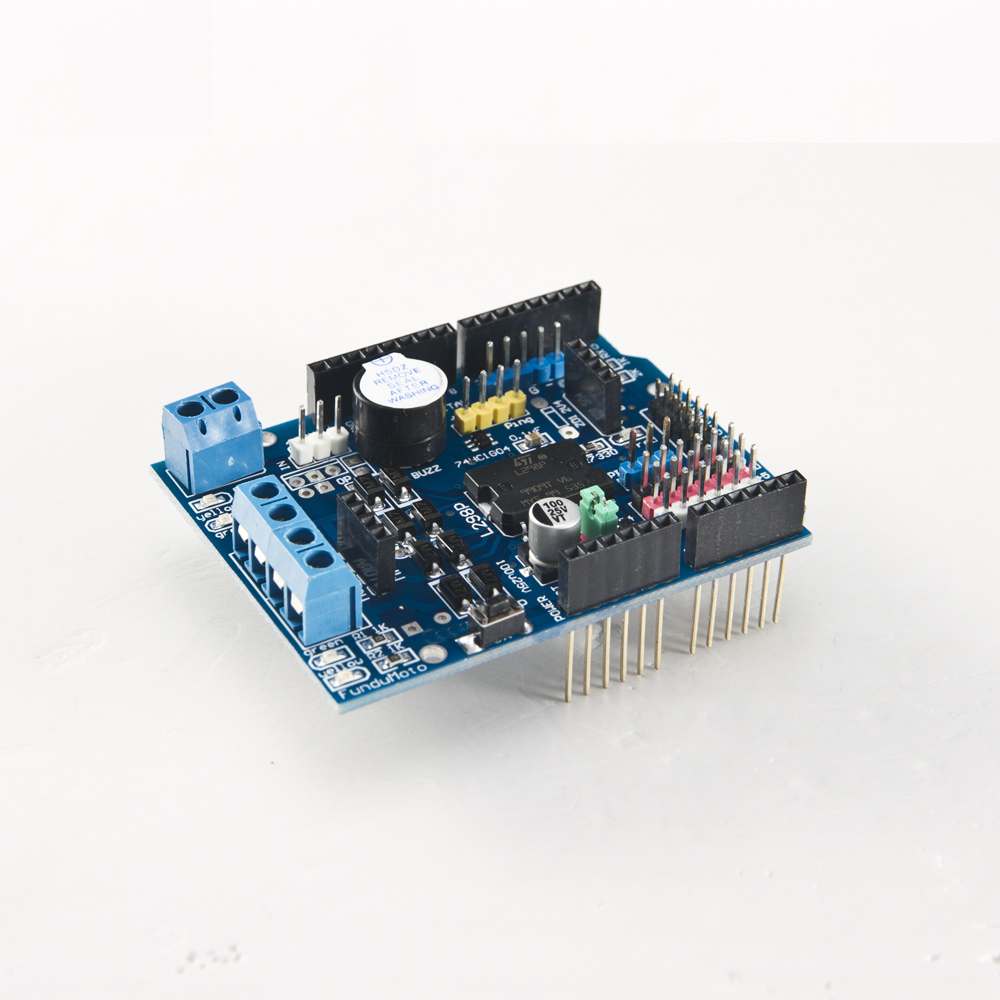

L298P Motor drive board for Arduino details

•   The logical part of the input voltage VD: 5 v     •    Size: 68 * 53 mm  •    Support PWM/PLL model motor speed control

•   The driving part of the input voltage VS: VIN input from 12 v to 6.5 v, PWRIN input from 35 v to 4.8 v

•   The logical part working current Iss: < 36 ma    •   The driving part of the working current Io: < 2 a

•   The maximum dissipation power: 25 w (T = 75 ?)   •    Working temperature: - 25 + 130 ?

•   The control signal input level: high level < Vin < 5 V, 2.3 V low level < Vin < 0.3 V to 1.5 V

•   Hardware interface: 5.0 mm spacing terminal   •    The belt buckle, and can manage access control signals

•   Drive form: dual power H bridge driver   •    A pin occupy: D4 ~ D7 direct drive motor
