OpenSmart

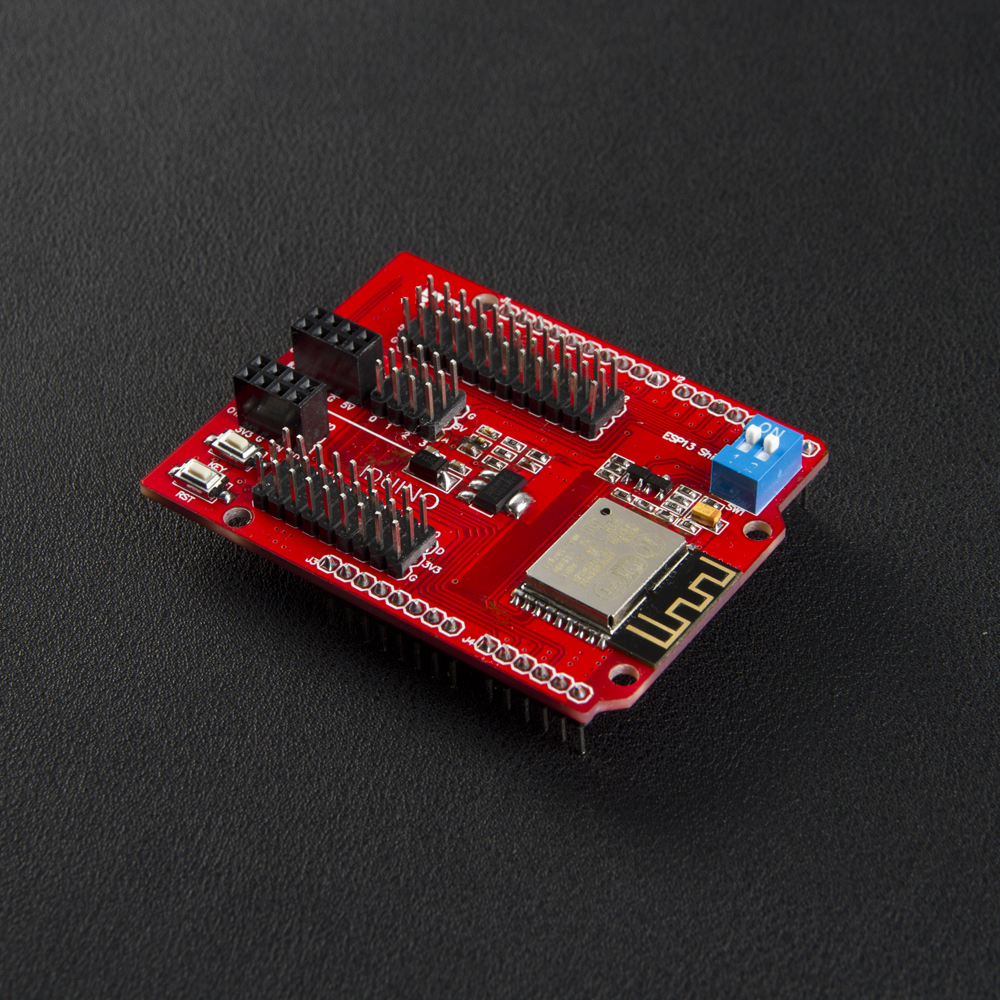

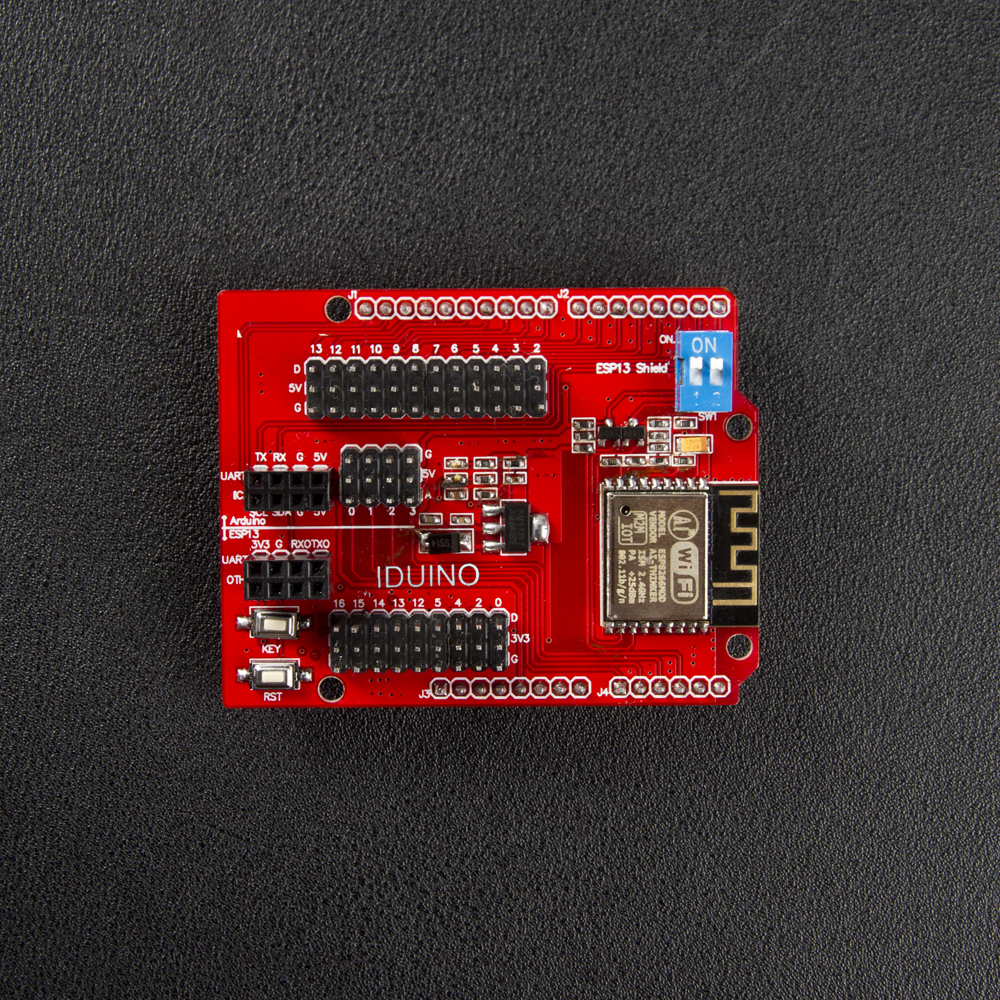

ESP8266 Wifi Shield For Arduino

Item No.: AD010


Specification:


  • 802.11 b / g / n wireless standards;

  • STA / AP modes support ;
  • TCP / IP protocol stack, One socket;
  • Supports standard TCP / UDP Server and Client;
  • Supports serial port baud rate configuration: 1200/2400/4800/9600/19200/38400/57600/74800/115200 bps;
  • Supports serial data bits: 5/6/7/8 bits;
  • Supports serial parity: none;
  • Supports serial stop bits: 1/2 bit;
  • Pin-compatible with Arduino UNO, Mega;
  • Arduino Pinout 2/3/4/5/6/7/8/9/10/11/12/13;
  • ESP8266 GPIO Pinout 0/2/4/5/9/10/12/13/14/15/16 / ADC / EN / * UART TX / UART RX;
  • KEY button: modes configuration;
  • Dual-Ports DIP switches: switching Arduino and ESP8266;
  • WiFi operation current: continuous transmission operation: ≈70mA (200mA MAX), idle mode: <200uA;
  • Serial WiFi transmission rate: 110-460800bps;
  • Temperature: -40 ~ + 125 ;
  • Humidity: 10%-90% non-condensing;
